VGA LCD Controller Board RT2270C-A with 9 inch AA090ME01 800x480 LCD Screen
K001733 RT2270C-A+20P+AA090ME01
Quantity:
US $35.00
To
via
DHL
Estimated Delivery on
5-7
Recommend Products
9inch AT090TN10 800X480 LCD Capacitive Touch Panel with H-D+VGA+DVI+ LCD Controller BoardK002877- M.NT68676.3+AT090TN10+VS090TC01-C1
9inch AA090ME01 800X480 TFT-LCD Screen With H-DMI VGA 2AV LCD Controller BoardK002716- VS-TY2662-V1+AA090ME01 800x480
9inch AT090TN10 800X480 TFT-LCD 9inch CapacitiveTouch Panel with H-D LCD Controller BoardK001956-VS-TY50-V2+AT090TN10+VS090TC01-C1 T000068
9inch AT090TN10 800X480 LCD 9inch Capacitive Touch Panel with H-D-MI+VGA+2AV LCD Controller BoardK001955- VS-TY2662-V1+AT090TN10+VS090TC01-C1 T000068

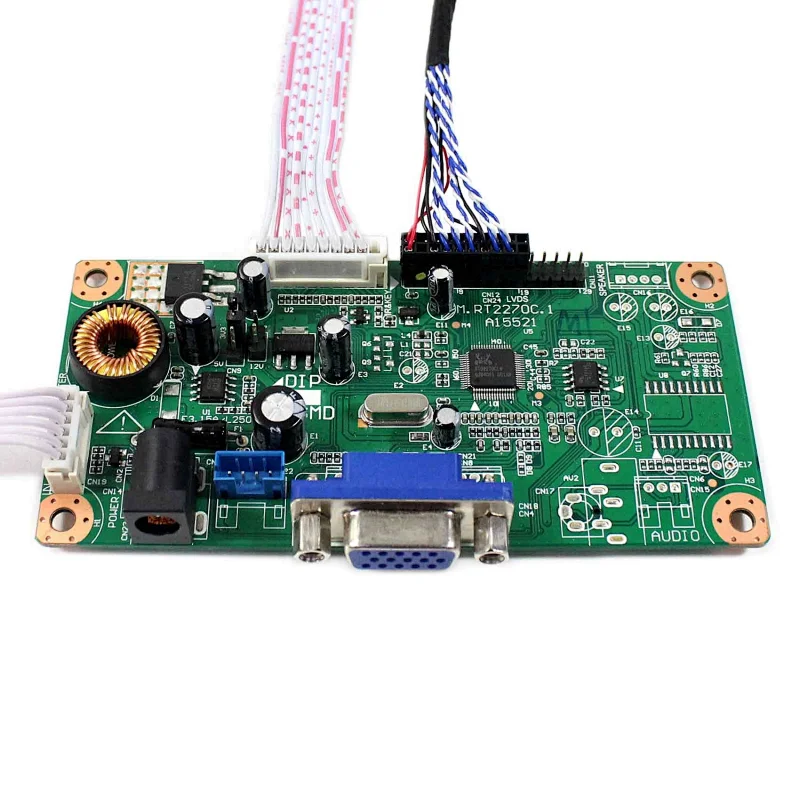

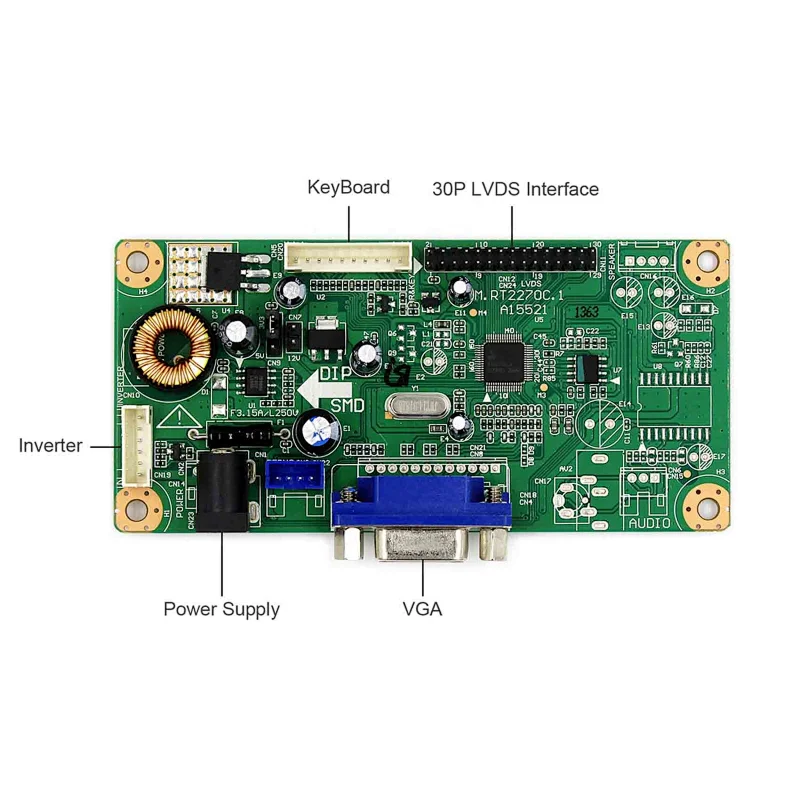

LCD Driver Board:
VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 107mm x 52mm x 18mm
VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 107mm x 52mm x 18mm

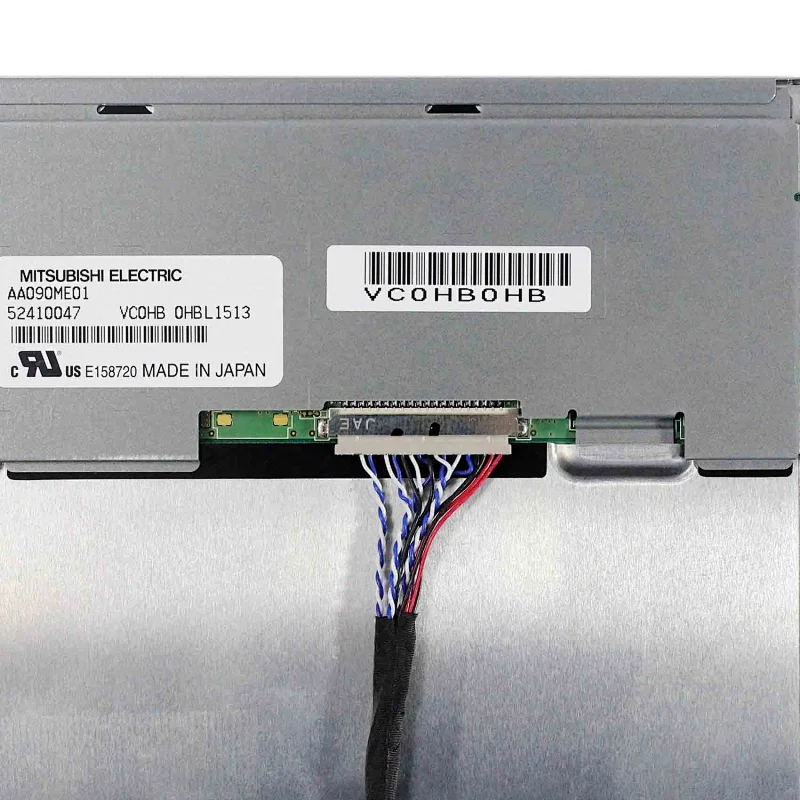

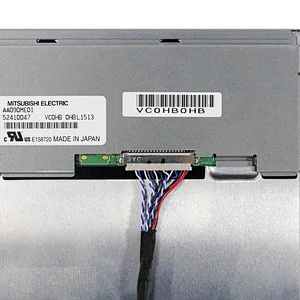

9"AA090ME01 800X480 LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 800RGB)×480
Outline Size 219× 136.2×10(H×V×D)
Display Area 196.8 × 118.08 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 900:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)
Display Mode IPS, Normally Black, Transmissive
Resolution 800RGB)×480
Outline Size 219× 136.2×10(H×V×D)
Display Area 196.8 × 118.08 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 900:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)

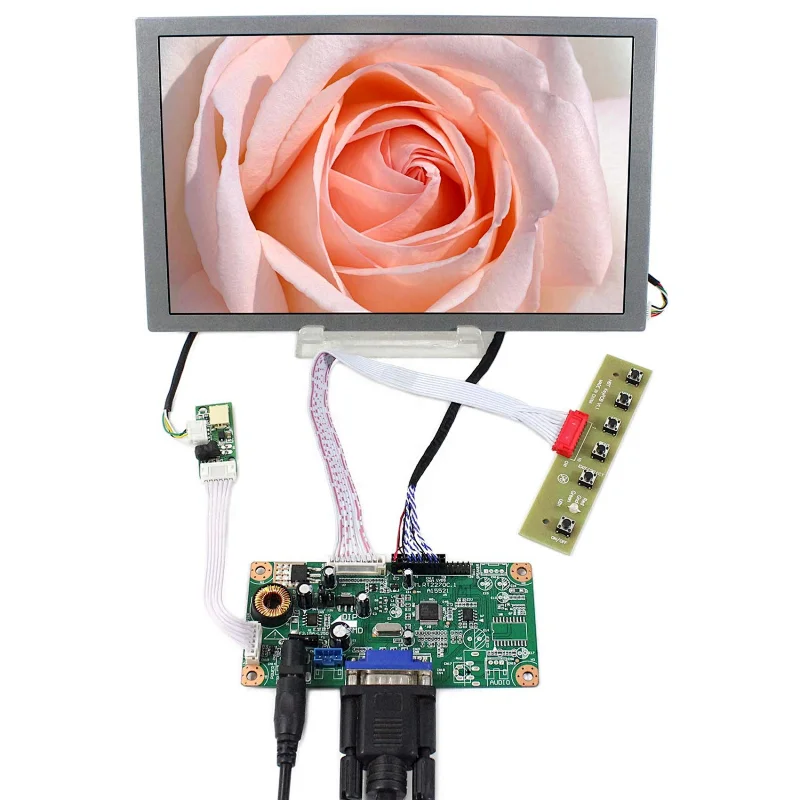

Packing list :
1× VGA LCD Controller Board RT2270C-A
1× 9inch AA090ME01 800x480 TFT LCD Display
1×Inverter Board
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
1× VGA LCD Controller Board RT2270C-A
1× 9inch AA090ME01 800x480 TFT LCD Display
1×Inverter Board
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
