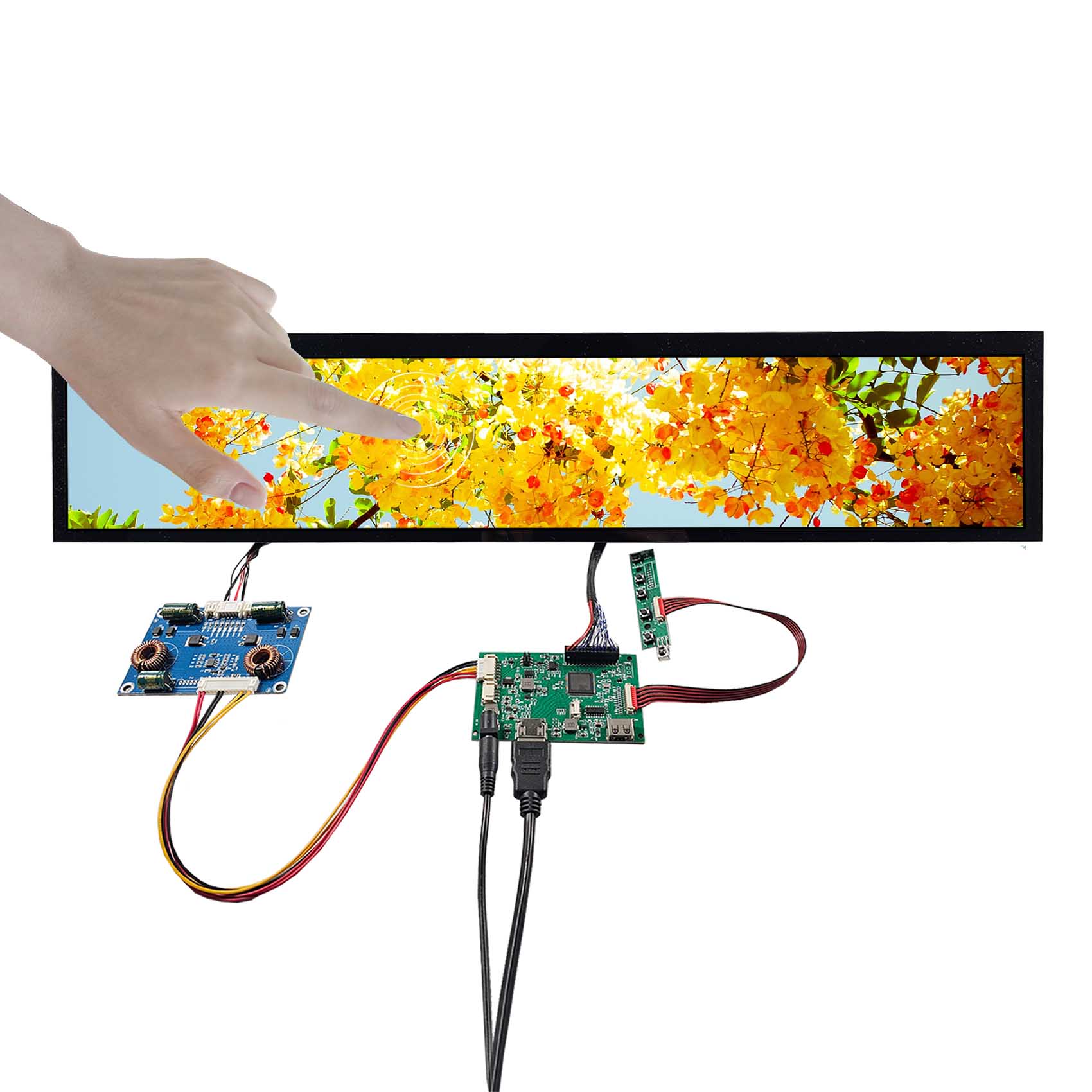

Product Name:24Inch 1920X360 Capacitive Touch Lcd Bar Display With H-D-compatible Usb Lcd Controller Board Kit

Specifications:

24 inch Lcd Display Price DV240FBM-NB0 24inch 1920x360 Capacitive Touch Tft Display:

Display Mode:IPS, Normally Black, Transmissive

Resolution:1920(RGB)×360

Outline Size :612.7× 132.1×10.2 (H×V×D)mm

Display Area: 579.888×121.104 (H×V)mm

Brightness :300 cd/m² (Typ.)

Contrast Ratio: 1200:1 (Typ.) (TM)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface :LVDS(1ch 6bit) Connector 40Pin

Backlight :WLED

Input Voltage: 3.3V (Typ.)

LCD Controller Board:

H-D-compatible USB LCD Driver Board Work for 24 inch Ultra Wide Lcd Display

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Voltage To LCD Panel： 3.3V 5V 12V (Jumper optional)

Video Input: H-D-compatible USB

HDMI: Support H-D-compatible 1.4

USB: Support Video Playback, Picture Playback, Text Playback

Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and plugged into the USB of the driver board, the power can be upgraded, and it will automatically restart after completed)

Image: Support Rotate 180degree

Audio: Speaker Support 8ohm 2W/ 4ohm 2W

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 90mm x 51mm x 14mm

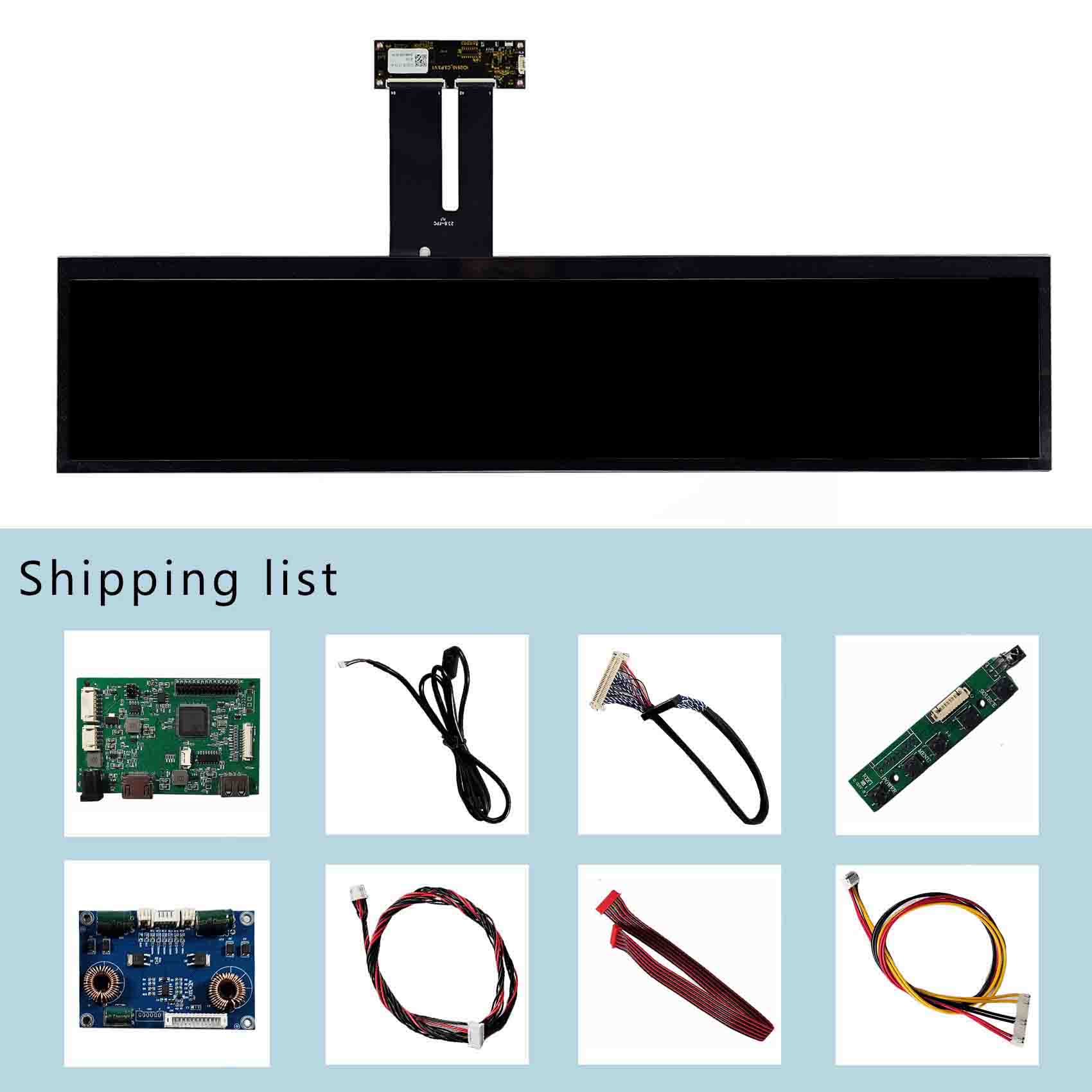

Packing list:

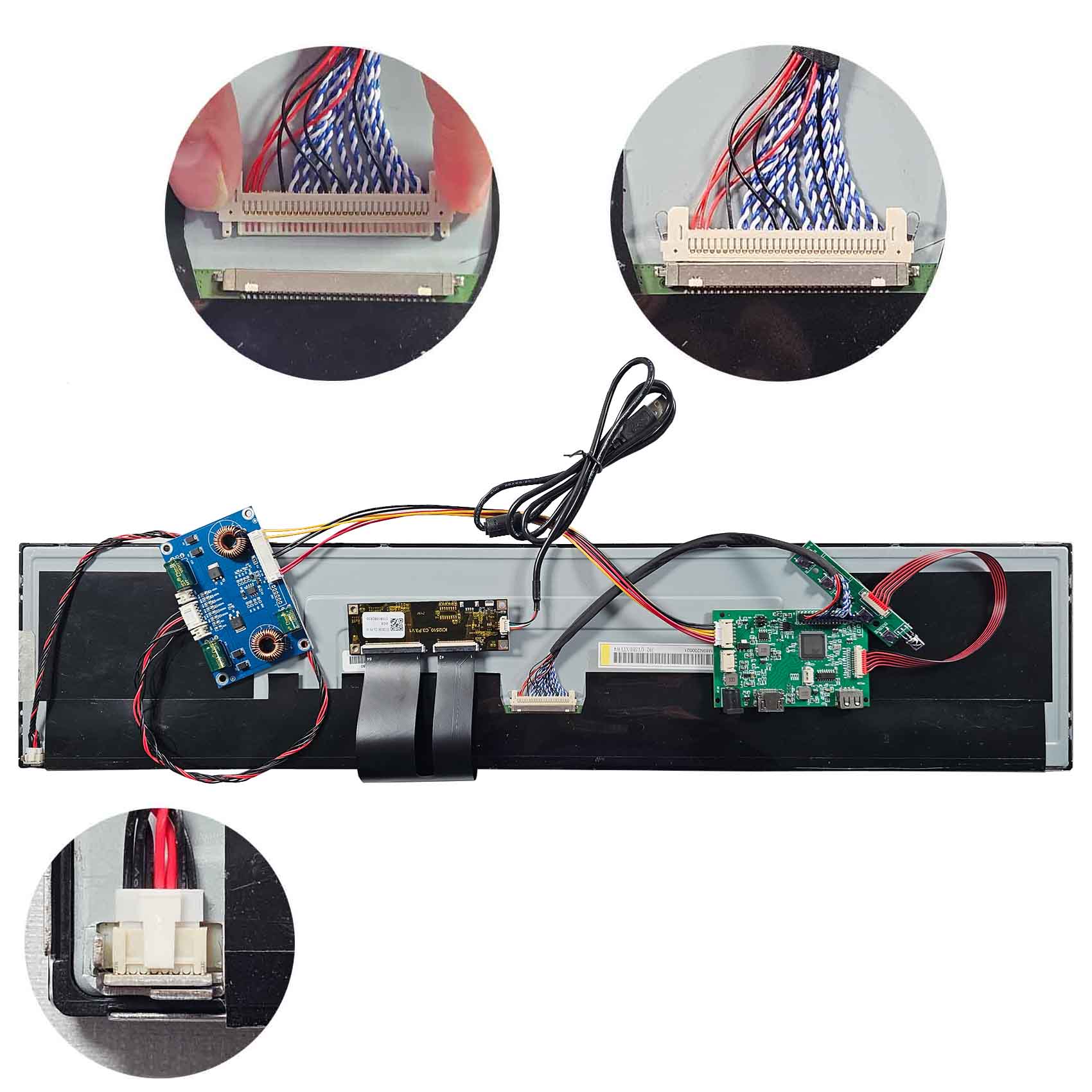

1× H-D-compatible USB LCD Controller Board VS-TY2660H-V823

1× 24"DV240FBM-NB0 1920X360 Capacitive Touch Large Lcd Display Screen For Commercial Display Screens

1× LVDS Cable

1× Keyboard With Cable
