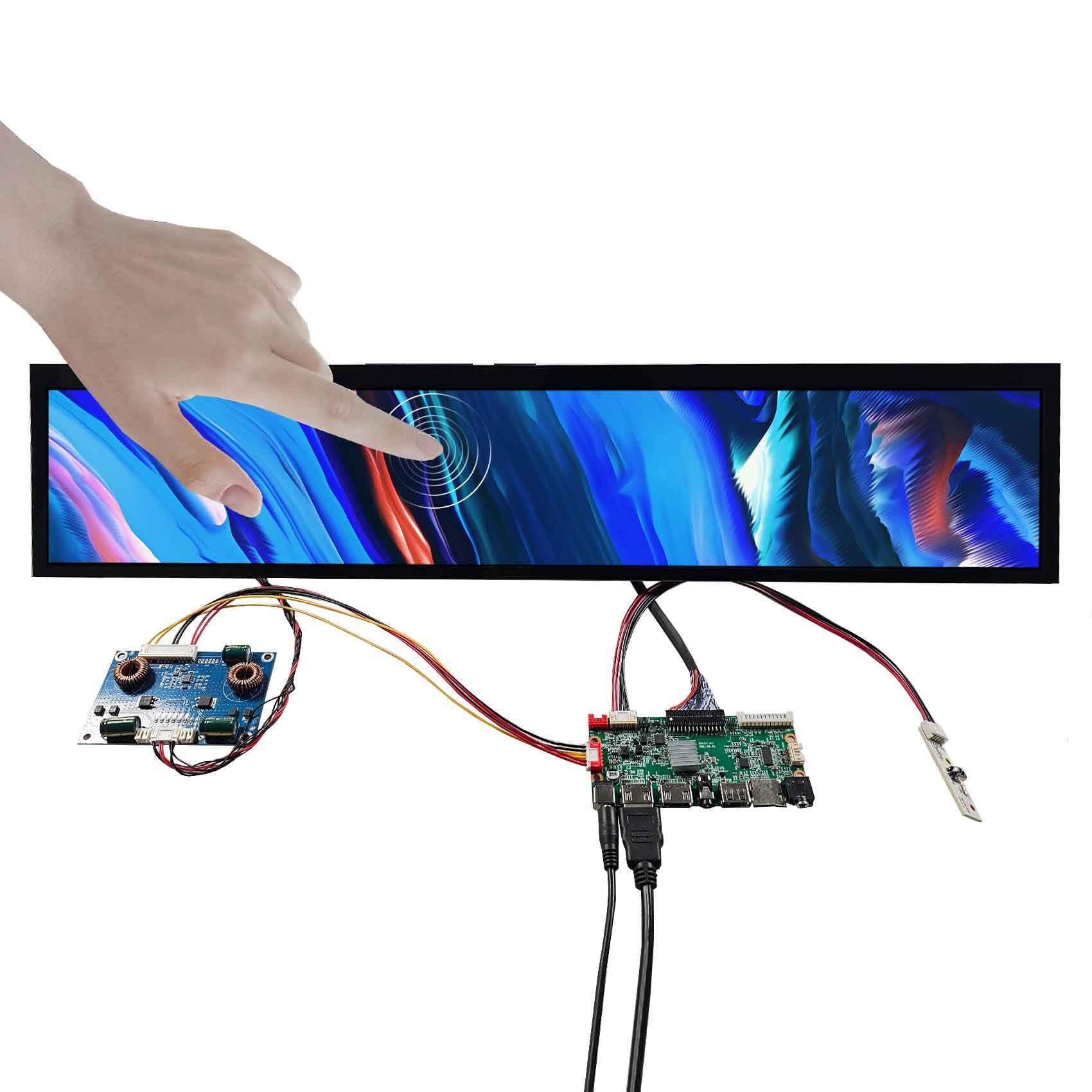

Product Name:Dv240Fbm-Nb0 24"1920X360 Capacitive Lcd Display Touch Screen With H-D-compatible USB SD AV Lcd Driver Board

Specifications:

Commercial Digital Screens DV240FBM-NB0 24inch 1920x360 Capacitive Touch Screen Lcd Panel:

Display Mode:IPS, Normally Black, Transmissive

Resolution:1920(RGB)×360

Outline Size:612.7× 132.1×10.2 (H×V×D)mm

Display Area:579.888×121.104 (H×V)mm

Brightness:300 cd/m² (Typ.)

Contrast Ratio :1200:1 (Typ.) (TM)

Viewing Angle :89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface: LVDS(1ch 6bit) Connector 40Pin

Backlight :WLED

Input Voltage: 3.3V (Typ.)

LCD Controller Board:

LCD Driver Board H-D-compatible USB SD AV Work for 24 inch Lcd Display Panel

Input Power Adapter: 12Vdc more than 2A

Come In Standby Model When Not Input Signal

Standby Model <0.3W

Multimedia supports MP4

OSD: Support Menu Contrast Brightness

Audio Input: H-D-compatible USB SD AV

Audio Output: Speaker Earphone

Key Board: Power Menu Up Down Exit

Language: English

Board Size: 107mm x 50mm x 15mm

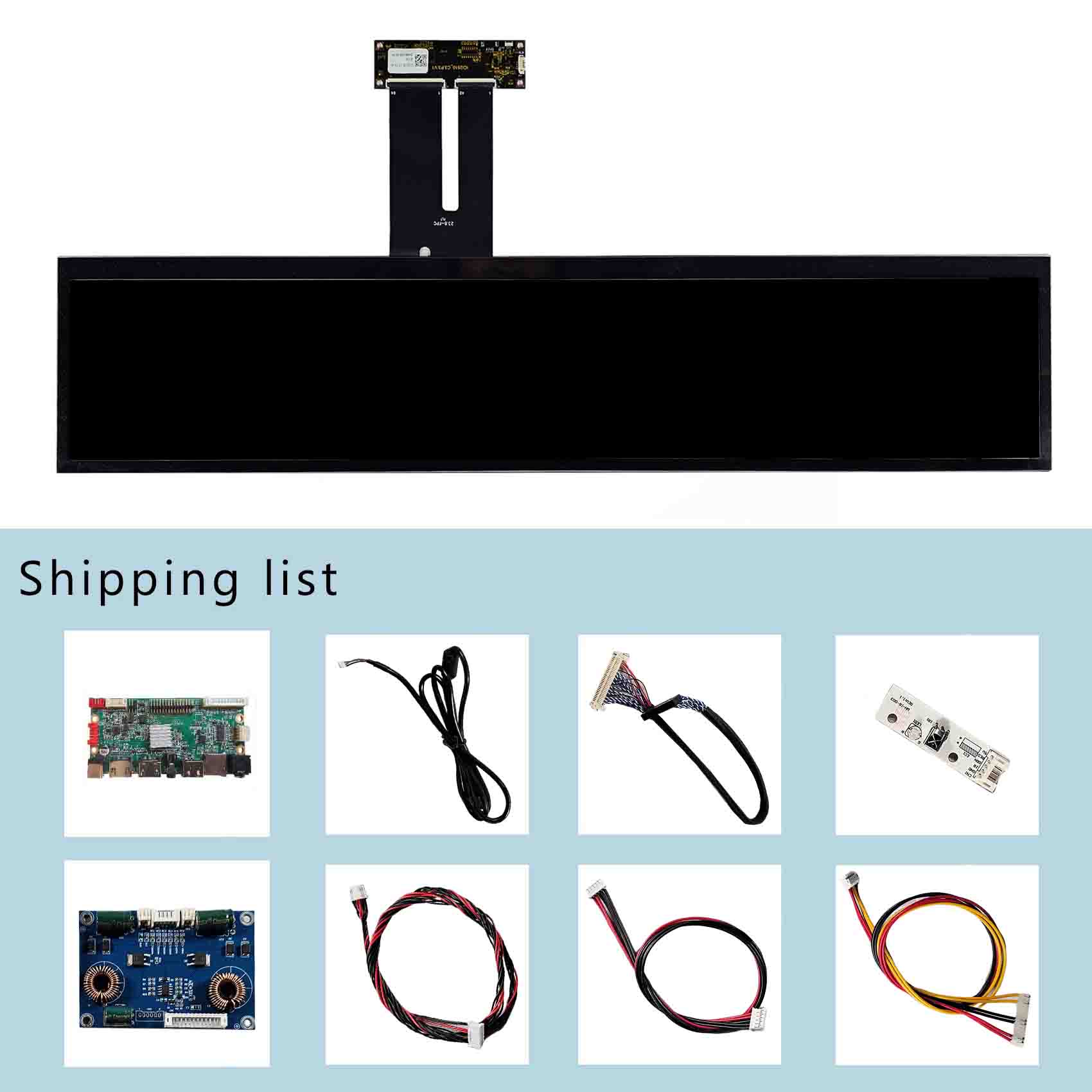

Packing list:

1× H-D-compatible USB SD AV LCD Controller Board VS-CS56S2

1× 24"DV240FBM-NB0 1920X360 Capacitive Touch Large Display For Commercial Digital Signage Displays

1× Converter Board

1× Signal Cable

1× Keyboard With Cable
