Model Number:AT056TN52+KYV-N2V1+VS056TP-A1 (K000116)
Board:lcd controller board
Power:12Vdc More than 2A.

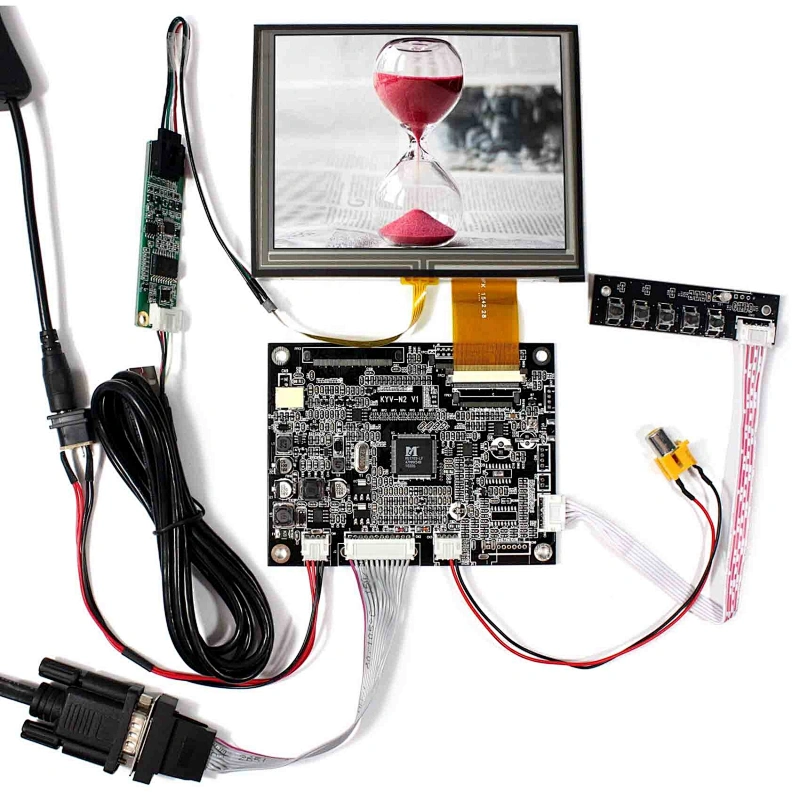

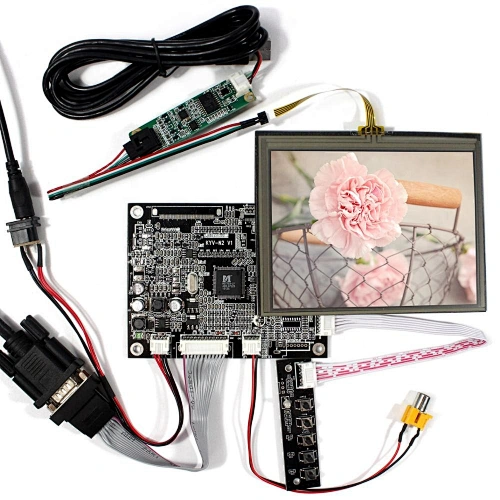

VGA AV input LCD Controller board 5.6inch 640x480 LCD panel with Touch panel
KYV-N2 V1+AT056TN52 V.3+VS056TP-A1

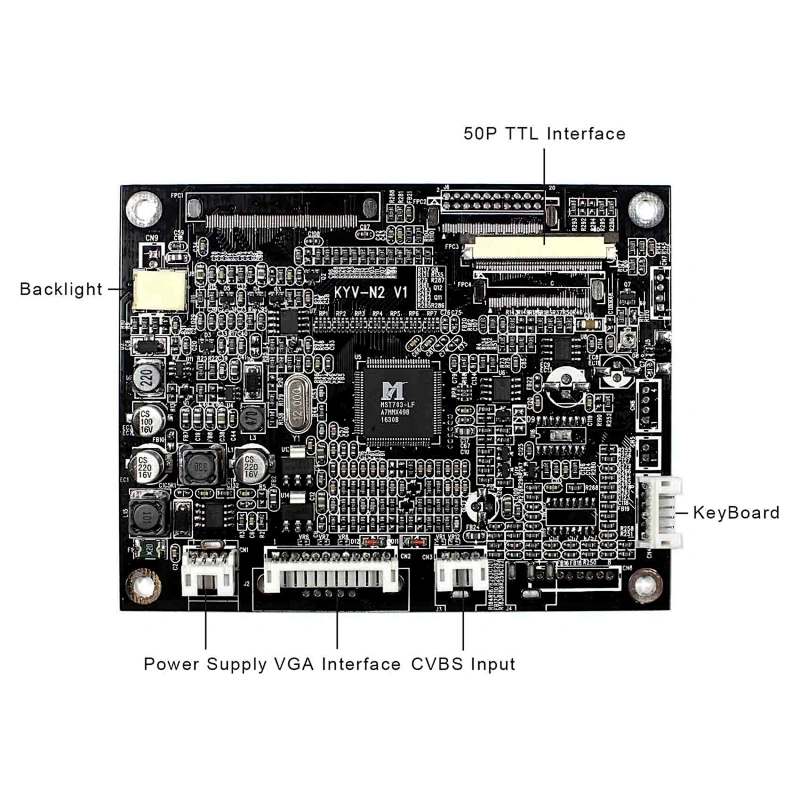

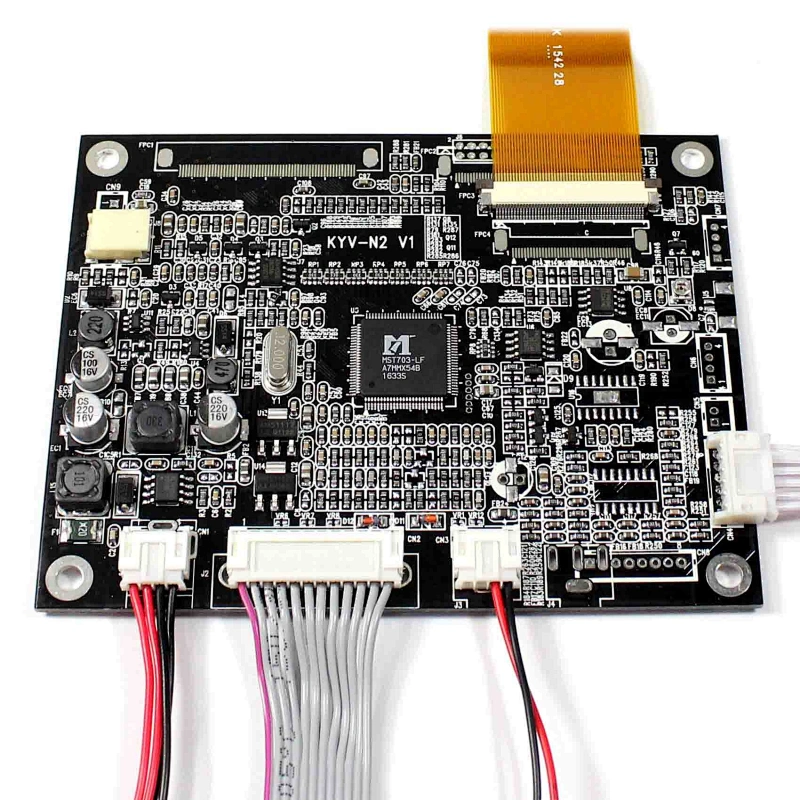

VGA AV LCD Controller BoardKYV-N2 V1:
It is widely use for Industrial Control, Video intercom, Instruments and meters. Medical Equipment,
Security and protection Control, On-vehicle Display, Bank System, POS Machine etc.
Board Size:110mm x 85mm x 10mm
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
OSD: Brigtness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
5.6” 640x480 TFT LCD Screen AT056TN52 V.3 :
Display Mode: TN, Normally White, Transmissive
Panel Type: a-Si TFT-LCD, LCM
Outline Size: 126.5(H)×100(V)x5.7(D)mm
Display Area: 112.896(H)×84.672(V)
Backlight type: WLED
Brightness: 200 cd/m² (Typ.)
Contrast Ratio: 500 : 1 (Typ.) (Transmissive)
Aspect Ratio: 4:3 (H:V)
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)
Signal Interface: TTL 50 pins
Operating Temperature: -20~70 °C

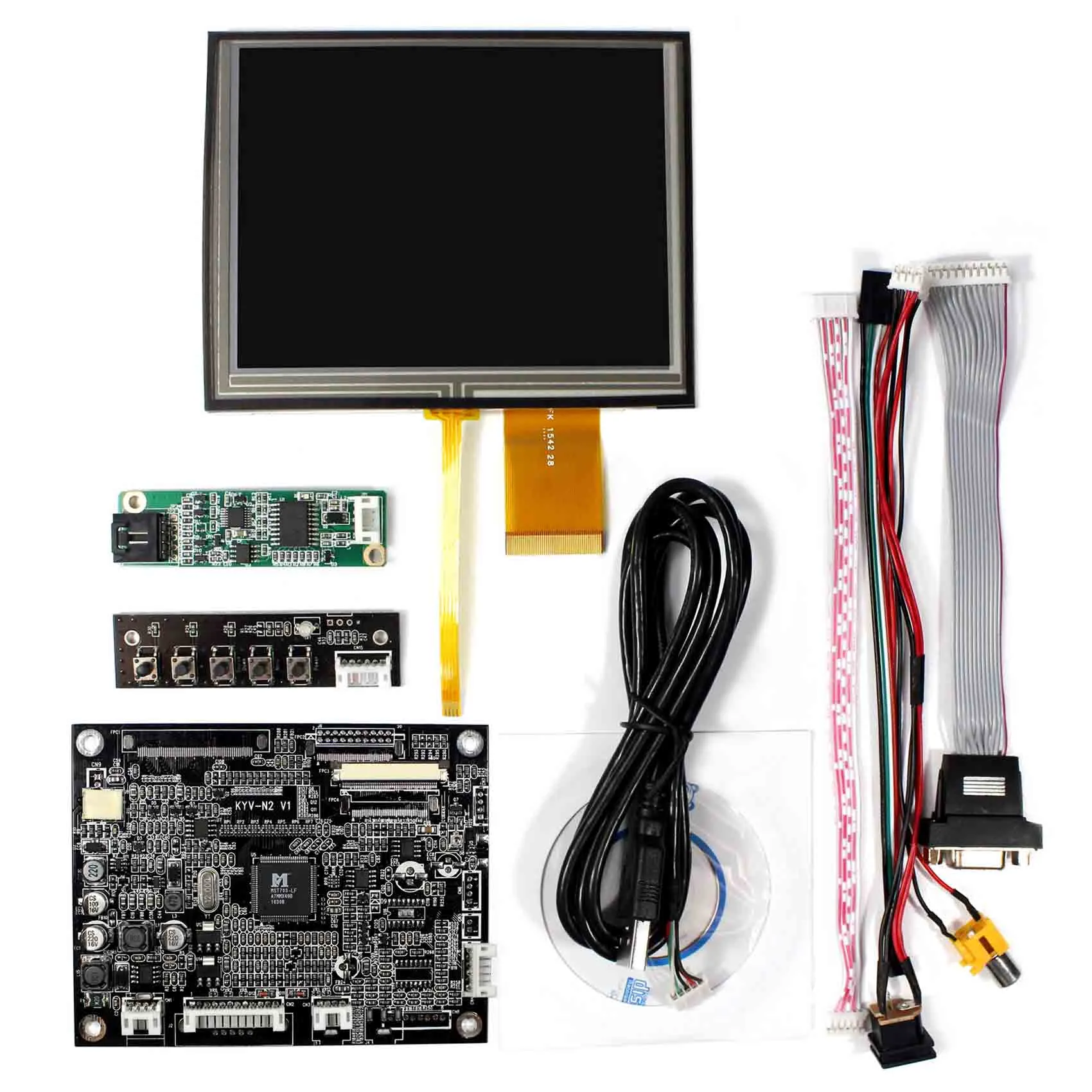

Packaging & Shipping
1× VGA AV LCD Controller Board KYV-N2 V1
1× 5.6inch AT056TN52 640x480 LCD Panel
1× USB port touch panel controller card
1× USB Wire
1× CD Driver for touch control card Support LINUX Windows CE XP and Win7
1× VGA Cable
1× AV Cable
1× Power Supply Cable
1× Keyboard With Cable
Trade Term:EXW Shenzhen or FOB Shenzhen
Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post
Payment:T/T HSBC, Paypal, Western Union
1 year warranty from the day the product sold. Some technical issue can be solved online.
