Product Description

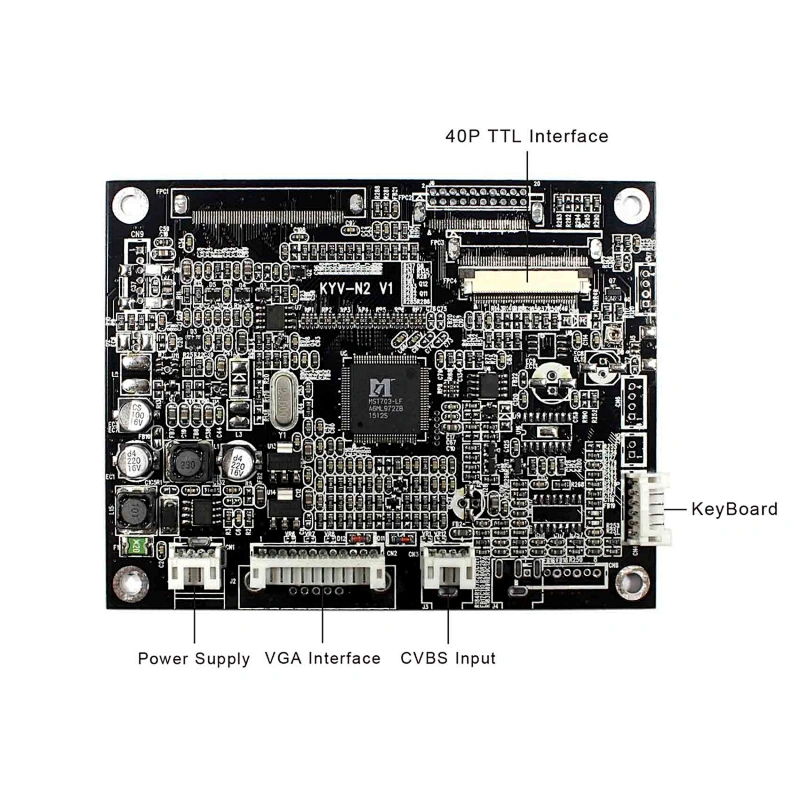

VGA AV LCD Controller BoardKYV-N2 V1:
It is widely use for Industrial Control, Video intercom, Instruments and meters.Medical Equipment,
Security and protection Control, On-vehicle Display,Bank System, POS Machine etc.
Board Size:110mm x 85mm x 10mm
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
OSD: Brigtness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

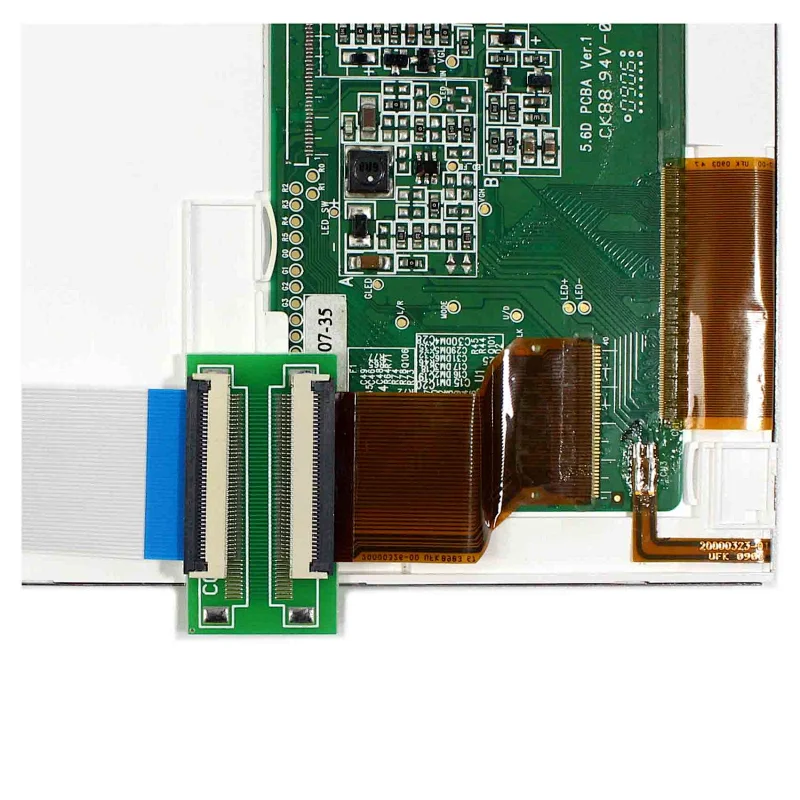

5.6” 640x480 LCD Screen AT056TN53 V1:
Display Mode: TN, Normally White, Transmissive
Panel Type: a-Si TFT-LCD , LCM
Resolution: 640x480
Outline Size: 126.5(H)×100(V)x5.7(D)mm
Display Area: 112.9(H)×84.67(V)
Backlight type: WLED
Brightness: 350 cd/m² (Typ.)
Contrast Ratio:500 : 1 (Typ.) (Transmissive)
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)
Signal Interface:Digital
Operating Temperature: -20 ~ 70 °C
Voltage Input: 3.3V
Weight: 83.1g


Packaging & Shipping

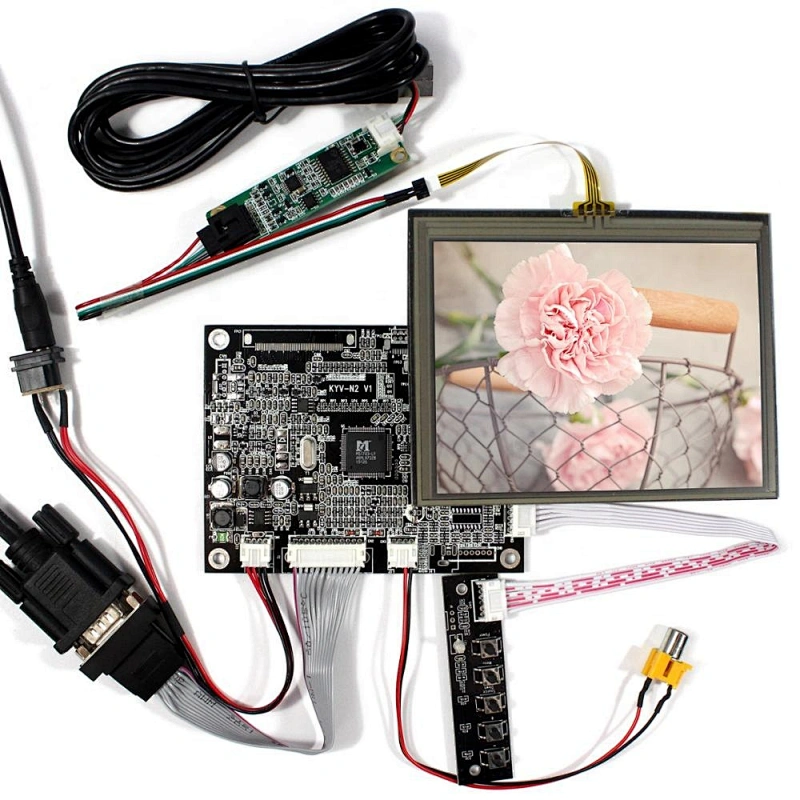

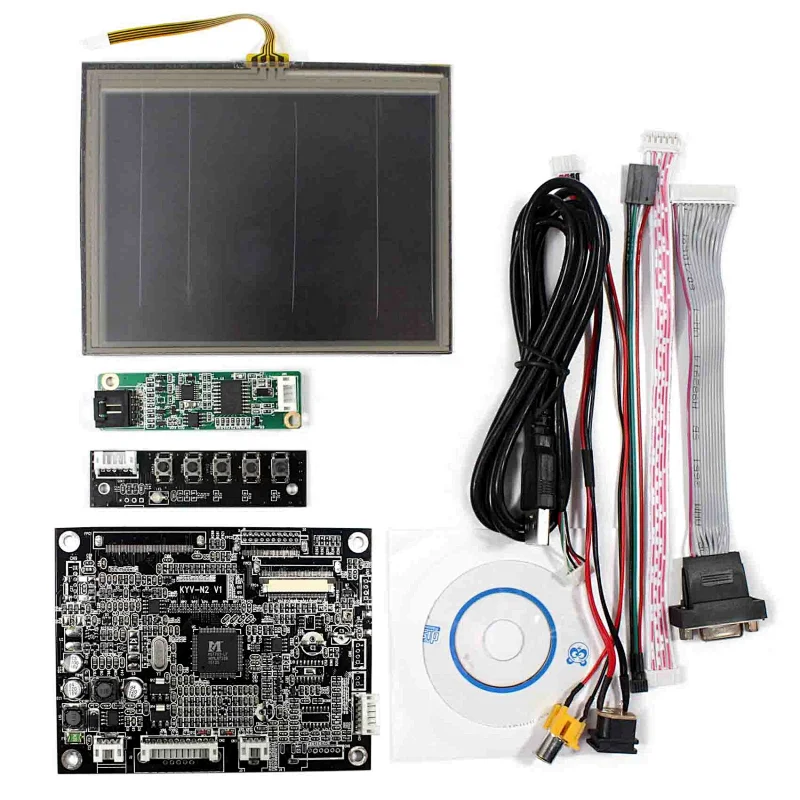

1× VGA AV LCD Controller Board KYV-N2 V1
1× 5.6inch 640x480 AT056TN53 V1 LCD panel
1× USB port touch panel controller card
1× USB Wire
1× CD Driver for touch control card Support LINUX Windows CE XP and Win7
1× VGA Cable
1× AV Cable
1× Power Supply Cable
1× Keyboard With Cable
FAQ
Trade Term:EXW Shenzhen or FOB Shenzhen
Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post
Payment:T/T HSBC, Paypal, Western Union
Our Services
1 year warranty from the day the product sold. Some technical issue can be solved online.
Company Information
VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.
The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.
VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.
All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.
Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines
QC system: ISO9001
