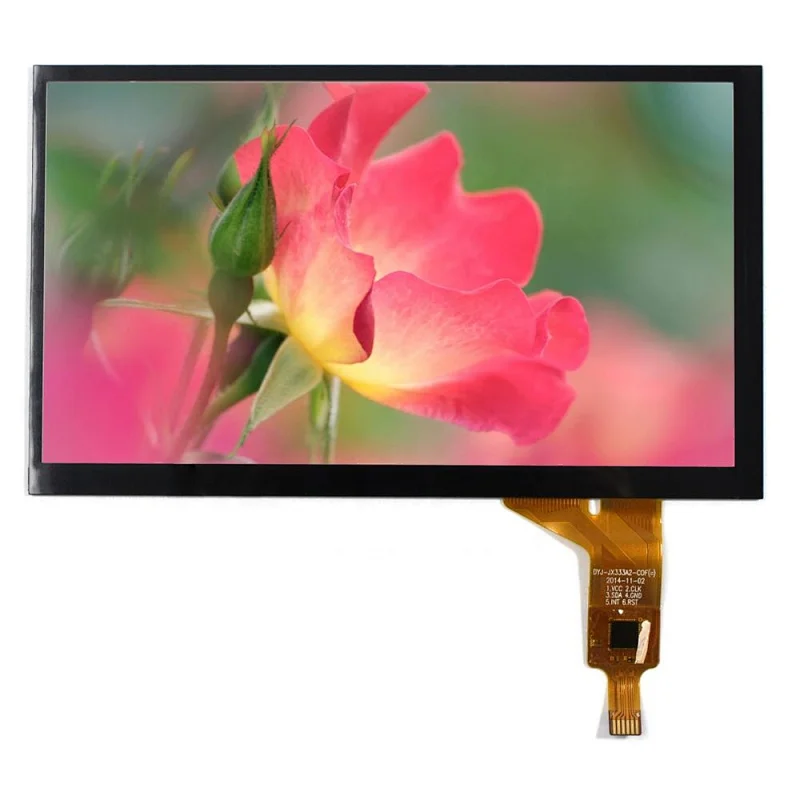

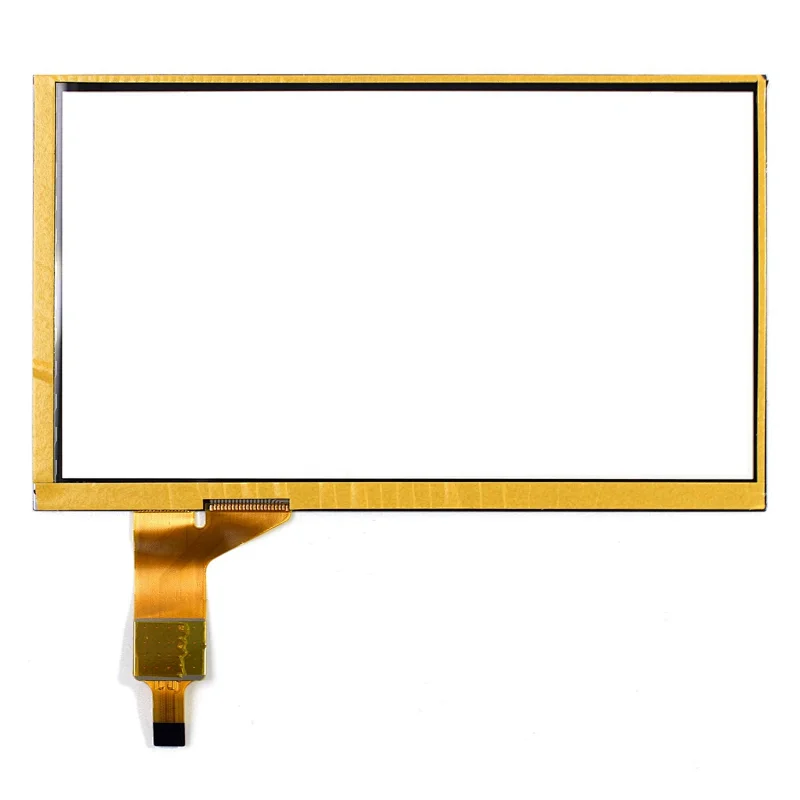

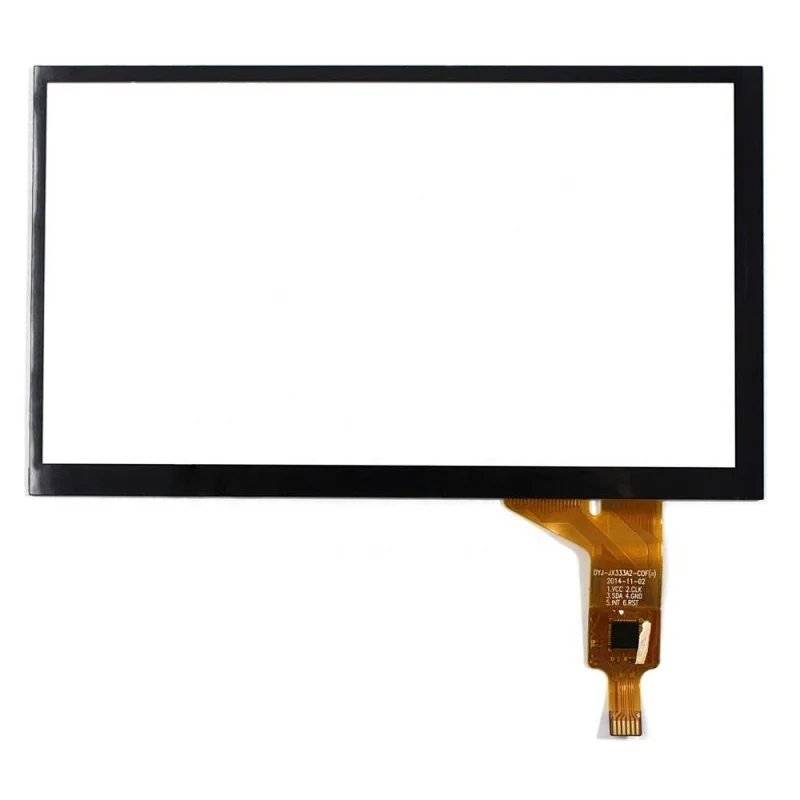

7 inch 800x480 capacitive touch screen with i2c interface
T000049 VS-C07001-01
Quantity:
US $35.00
To
via
DHL
Estimated Delivery on
5-7
Recommend Products
7inch Capacitive Touch Panel work for 7inch N070ICG-LD1 HSD070PWW1 1280X800 16:10 LCD ScreenT000065 VS070TC02-B1
Capacitive Touch Screen for 7inch AT070TN92 AT070TN93 800x480 16:9 LCDT000064 VS-070TC01-B1
7inch Capacitive Touch Panel for 7inch AT070TN83 800x480 16:9 LCD Screen Capacitive touch displayT000057 7inch 16:9 for AT070TN83 V1
Capacitive touch lcd monitor 7inch 1024x600T000050 VS-C0702-02TP
Description:
Compatible With 7inch 800x480 LCD Screen
Interface I2C.

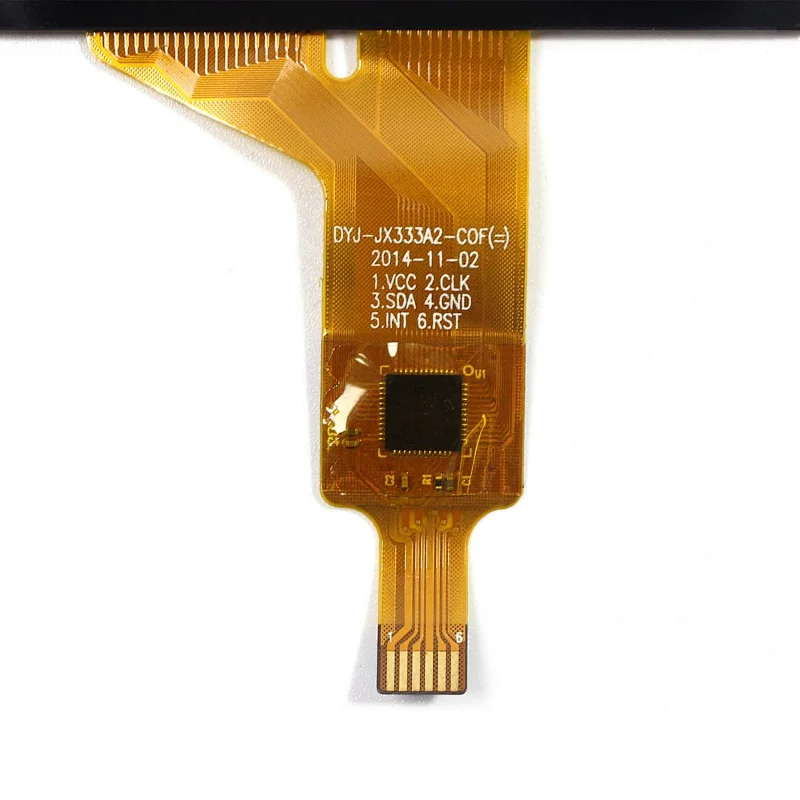

Pin1:VDD
Pin2:SCL
Pin3: SDA
Pin4:GND
Pin5: INT
Pin6:WAKE
Dimension Size: 163.6mm x 96.86 mm
Display Area：154.08mm x 85.92 mm
Support five points
Compatible With 7inch 800x480 LCD Screen
Interface I2C.
Pin1:VDD
Pin2:SCL
Pin3: SDA
Pin4:GND
Pin5: INT
Pin6:WAKE
Dimension Size: 163.6mm x 96.86 mm
Display Area：154.08mm x 85.92 mm
Support five points
Packing list :
1× 7inch Capacitive Touch Panel VS-C07001-01
1× 7inch Capacitive Touch Panel VS-C07001-01
