Model NO.
VS-C0702-02TP (T000050)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Brand Name:VS
  • Model Number:VS-C0702-02TP (T000050)
  • Place of Origin:CN;GUA
  • Type:TFT
  • Size:7inch
  • Resolution:1024x600
  • Interface Type:40pin LVDS 6bit or 8bit
  • Driver IC:FT5316: G+P

Arduino Capacitive touch lcd monitor 7inch 1024x600

ITEMDESCRIPTIONUNIT
Product Name7"TFT LCD Module
Model NoAT070TNA2
Pixel1024 RGB (H) X 600 (V)pixels
Outline Dimension165.75 x 105.39 x 3.40mm
Active Area153.6 x 90mmmm
Pixel Pitch0.05(H) X 0.15(V)mm
BacklightWhite LED
Connector40pin LVDS 6bit or 8bitmm
Operating Temp-20 to 60C
Storage Temp-30 to 70C

ITEMDESCRIPTIONUNIT
Product Name7"Capacitive touch screen for 1024x600 lcd
Model NoVS-C07001-02
Touch Panel Size164 x 103+1.6mm
Area Size155 x 92mm
Driver ICFT5316: G+P
Operation temperature-20 to 70C
Storage temperature-30 to 80C
Operating Voltage2.8-3.3V
Transmittancemore or equal to 87%
Tolerance±0.2mm
Surface Hardness6H (Pencil)
Compatible withCompatible with 1024x600 Interface I2C

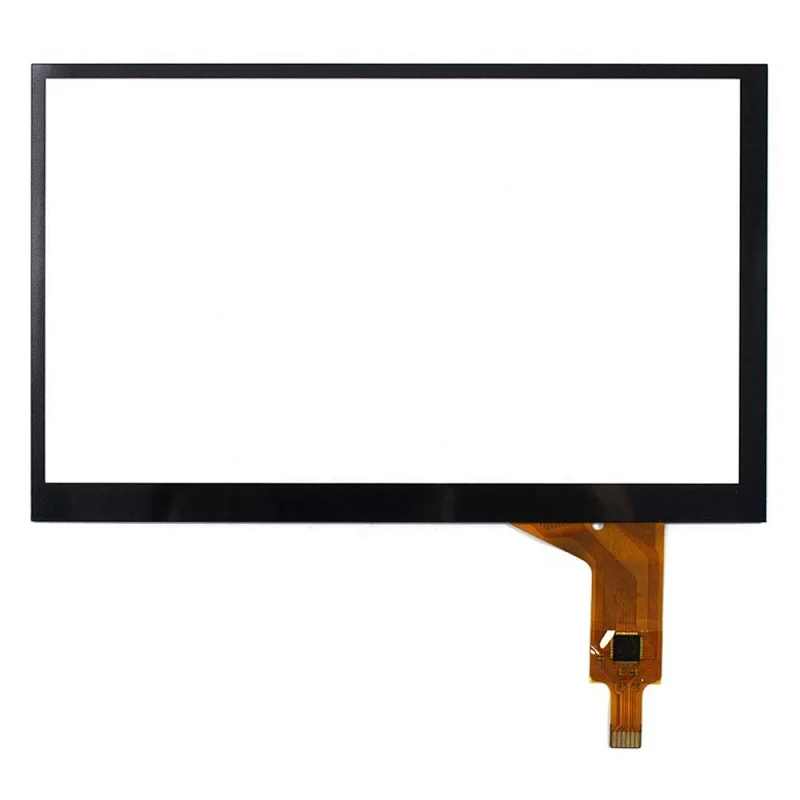

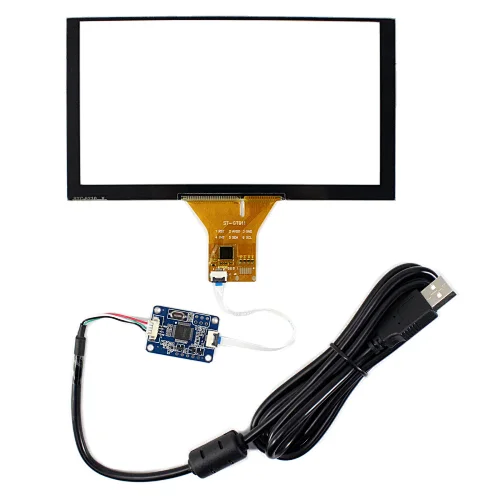

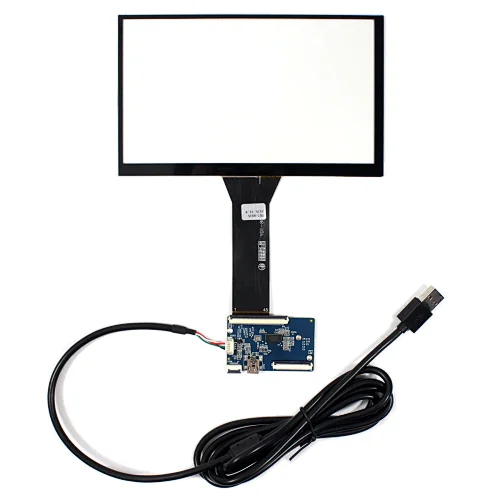

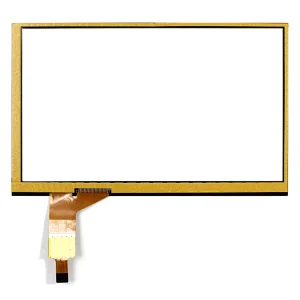

PICTURE AS BELOW:

T000050(3).jpgT000050(3).jpgT000050(1)

PAYMENT TERMS:

we accept TT, Paypal, Western union

SHIPMENT:

We are via DHL/UPS/EMS/FedEx/TNT, HK POST

WARRANTY:

1 year warranty after sale the goods. Some technical issue can solved by wire.
