8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board
8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board
8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board
8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board
8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board
8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board
8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board
8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board
8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board
8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board
8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board

8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board

Model NO.
K001647 VS-TY2662-V1+AA084SC01
Minimum order quantity:
1 piece
Supply Ability:
10000 piece / Day
Country of Origin:
FOB SHENZHEN
Quantity:

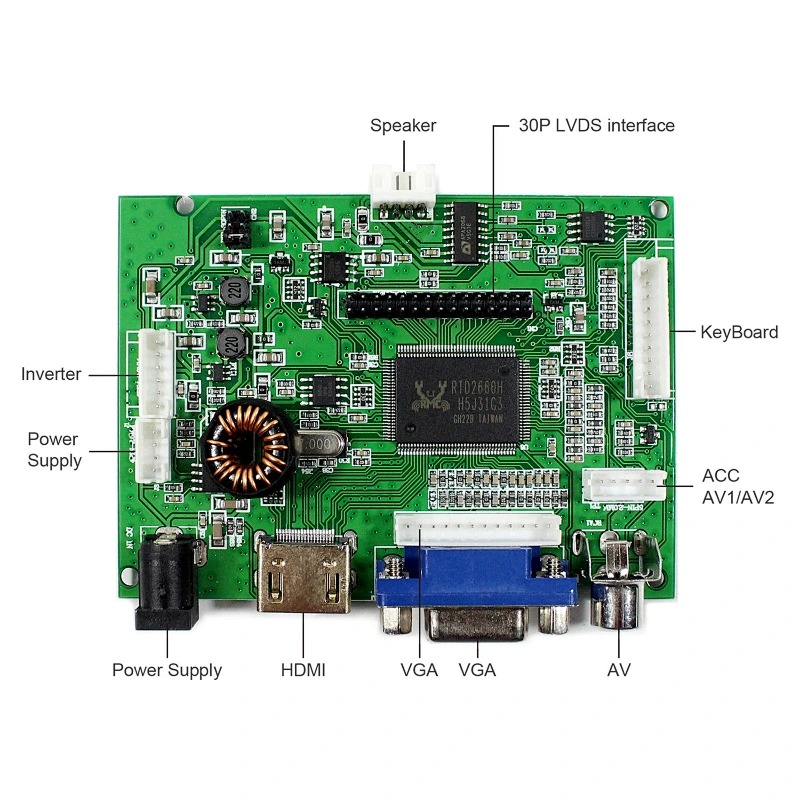

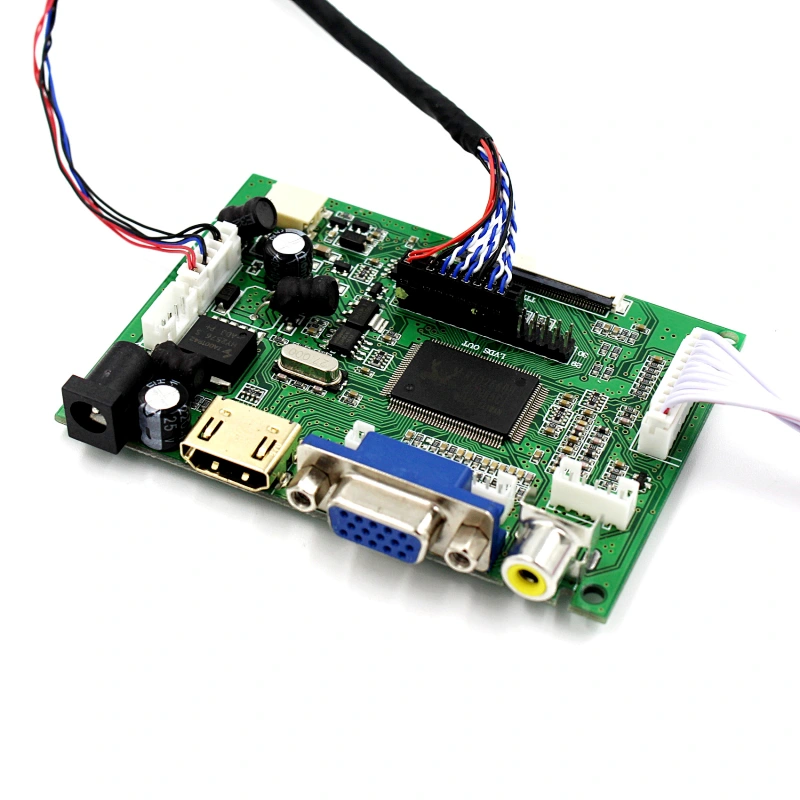

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    50Pin TTL Connector for 7inch~10.1inch LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 91mm x 66mm x 12mm

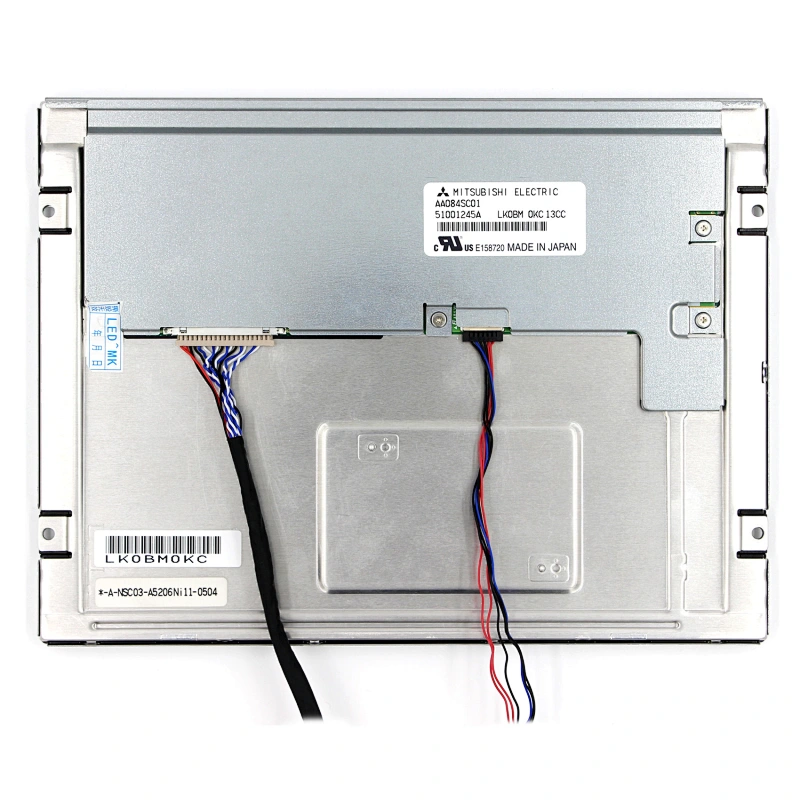

  • 8.4"AA084SC01 800X600 LCD Screen:
    Display Mode SWV, Normally Black, Transmissive
    Resolution 800RGB)×600
    Outline Size 199.5 ×149×12(H×V×D)
    Display Area 170.4 × 127.8 (H×V)
    Brightness 600 cd/m² (Typ.)
    Contrast Ratio 1000:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface  20 pins   LVDS (1 ch, 6/8-bit) , Connector
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

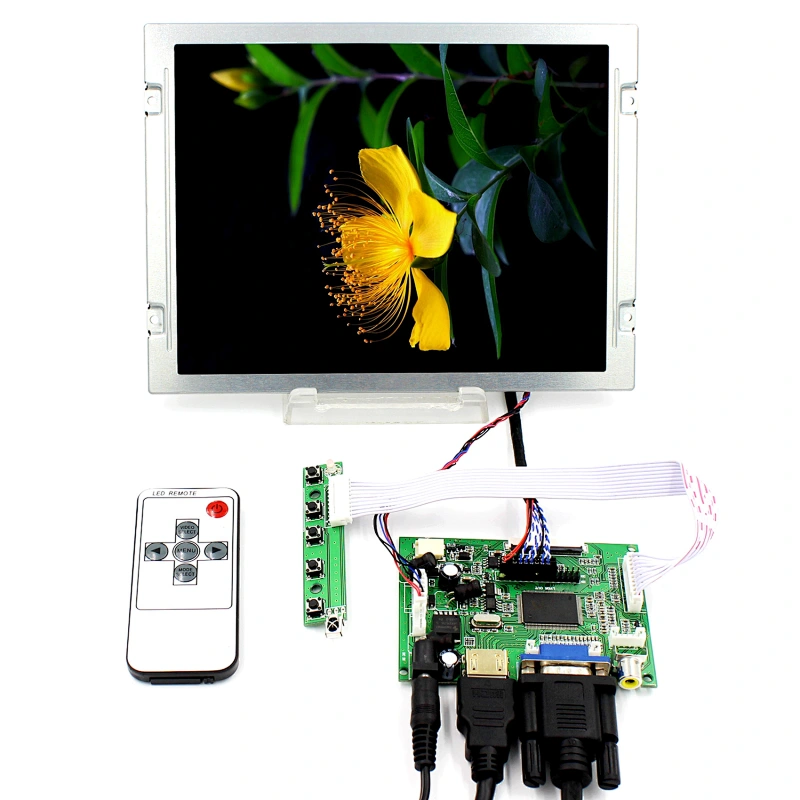

  • Packing list :
    1× HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
    1× 8.4inch AA084SC01 800X600 LCD Screen
    1× Backlight Cable
    1× LVDS Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
