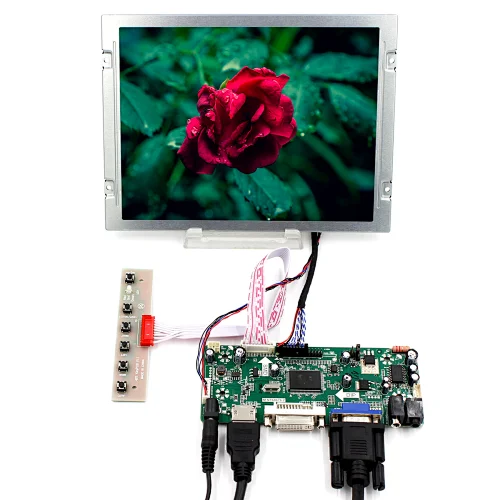

8.4" M084GNS1 R1 800X600 LVDS TFT LCD Screen with HDMI Audio Control Board lcd lvds control board lcd tft control board lvds board hdmi tft lcd lvds lcd lvds hdmi 8.4inch lvds tft M084GNS1 LCD screen 800x600 lvds tft lcd
K002402 M.NT678676 + M084GNS1
Quantity:
US $35.00
To
via
DHL
Estimated Delivery on
5-7
Recommend Products
8.4" G084SN05 V9 800x600 LCD Screen with H-D-Compatible VGA Audio Controller BoardK003072 M.NT68676+8.4 G084SN05 V.9 800x600
8.4" G084SN05 V9 800x600 LVDS LCD Screen with VGA Controller BoardK003071 RT2270C-806+ G084SN05 V.9 800x600
8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board tft lcd monitor panel 8.4" 800x600 TFT LCD lcd controller boardK001647 VS-TY2662-V1+AA084SC01
8.4inch AA084SC01 800x600 tft Lcd with LCD NT68676 driver board tft lcd monitor panel 8.4 inch IPS lcd panel lcd controller boardK001646 M.NT68676.2A+AA084SC01

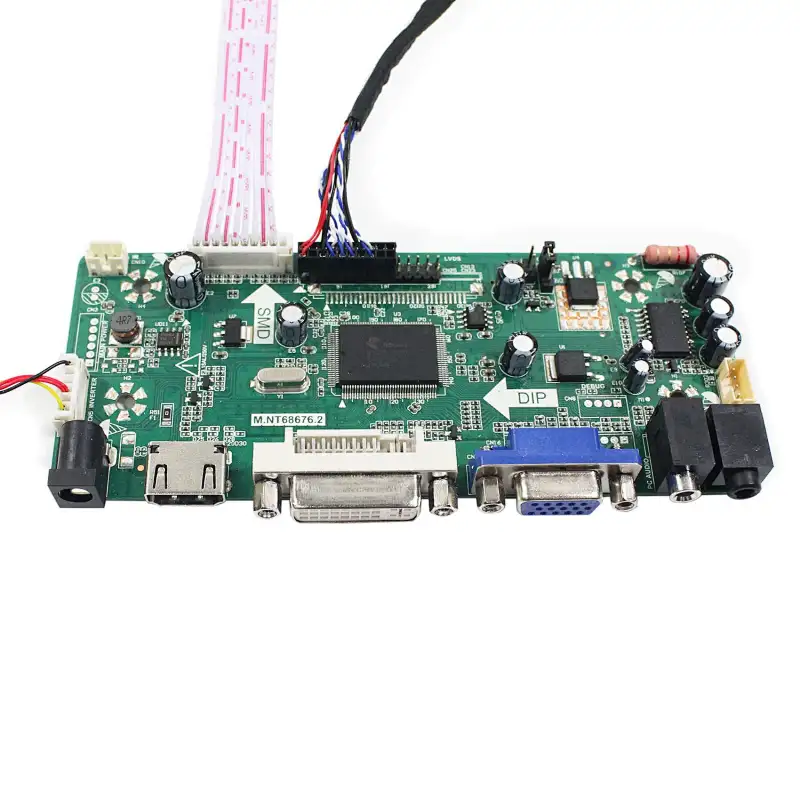

LCD LVDS Controller Board:
H-D DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H-D DVI VGA
Audio Input: H-D
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
8.4"M084GNS1 R1 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×600
Outline Size 203 × 142.5×6.2 (H×V×D)
Display Area 170.4 × 127.8 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 20 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

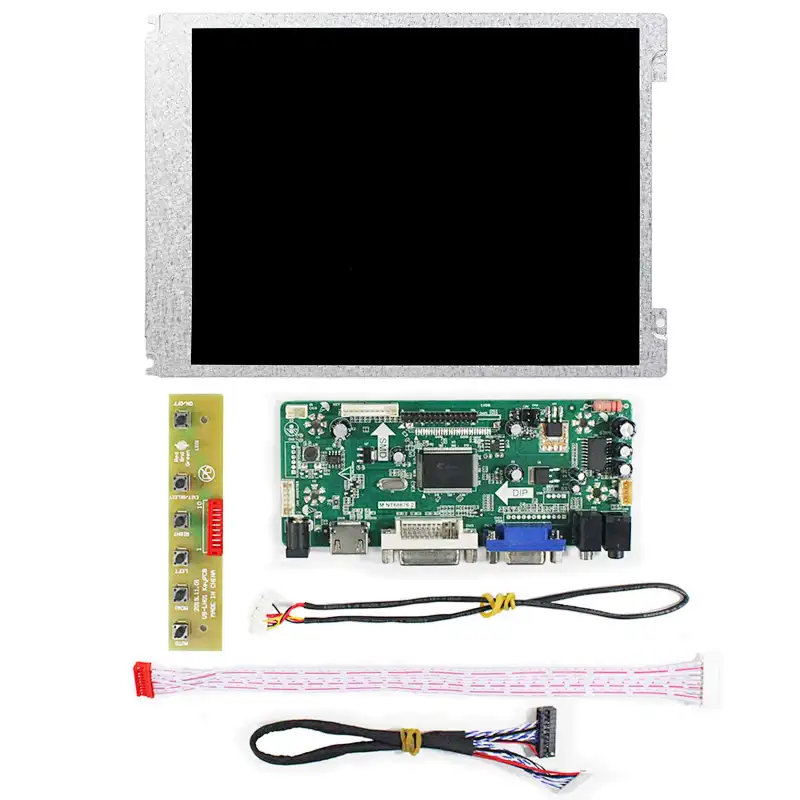

Packing list :
1× H-D VGA DVI LCD Controller Board M.NT68676
1× 8.4inch M084GNS1 800X600 LCD Screen
1× Backlight Cable
1× LVDS Cable
1× Keyboard With Cable
