8.4inch AA084SC01 800x600 tft Lcd with LCD NT68676 driver board tft lcd monitor panel 8.4 inch IPS lcd panel lcd controller board
K001646 M.NT68676.2A+AA084SC01
Quantity:
US $35.00
To
via
DHL
Estimated Delivery on
5-7
Recommend Products
8.4" G084SN05 V9 800x600 LCD Screen with H-D-Compatible VGA Audio Controller BoardK003072 M.NT68676+8.4 G084SN05 V.9 800x600
8.4" G084SN05 V9 800x600 LVDS LCD Screen with VGA Controller BoardK003071 RT2270C-806+ G084SN05 V.9 800x600
8.4" M084GNS1 R1 800X600 LVDS TFT LCD Screen with HDMI Audio Control Board lcd lvds control board lcd tft control board lvds board hdmi tft lcd lvds lcd lvds hdmi 8.4inch lvds tft M084GNS1 LCD screen 800x600 lvds tft lcdK002402 M.NT678676 + M084GNS1
8.4inch AA084SC01 800x600 tft Lcd panel with 2662 lcd controller board tft lcd monitor panel 8.4" 800x600 TFT LCD lcd controller boardK001647 VS-TY2662-V1+AA084SC01

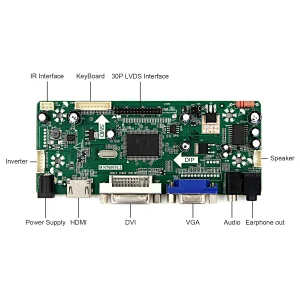

LCD Controller Board:
H-D-compatible DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H-D-compatible DVI VGA
Audio Input: H-D-compatible
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
H-D-compatible DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H-D-compatible DVI VGA
Audio Input: H-D-compatible
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

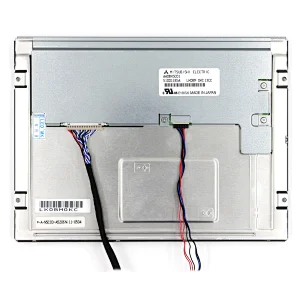

8.4 inch IPS lcd panel AA084SC01 800X600 LCD Screen:
Display Mode SWV, Normally Black, Transmissive
Resolution 800RGB)×600
Outline Size 199.5 ×149×12(H×V×D)
Display Area 170.4 × 127.8 (H×V)
Brightness 600 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface 20 pins LVDS (1 ch, 6/8-bit) , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)
Display Mode SWV, Normally Black, Transmissive
Resolution 800RGB)×600
Outline Size 199.5 ×149×12(H×V×D)
Display Area 170.4 × 127.8 (H×V)
Brightness 600 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface 20 pins LVDS (1 ch, 6/8-bit) , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list :
1× H-D-compatible VGA DVI LCD Controller Board M.NT68676
1× 8.4inch AA084SC01 800X600 Tft Lcd Monitor Panel
1× Backlight Cable
1× LVDS Cable
1× Keyboard With Cable
1× H-D-compatible VGA DVI LCD Controller Board M.NT68676
1× 8.4inch AA084SC01 800X600 Tft Lcd Monitor Panel
1× Backlight Cable
1× LVDS Cable
1× Keyboard With Cable
