Function:HD MI LCD Board Work for 9.7inch eDP Interface LCD Screen
Input power adapter:DC Connector 3.5mmx1.35mm 5~12Vdc Mirco USB 5Vdc
Energy Saving:Come In Standby Model When Not Input Signal
Standby Model:<1W
Video Input:Mini HD MI HD MI Version 1.4 Mini HDMI
OSD:Brightness Contrast Auto Language And So On
Language:English French German Spanish Italian And So On
Board Size:120mm x 62.5mm x 5mm
Compatible Work With:9.7inch 2048x1536 IPS LCD Screen
Place of Origin:CN;GUA
Display Size:9.7inch
Model Number:K001844 VS-RTD09703-V1+ 9.7inch LP097QX1
Brand Name:VS
Products Show
Product Description

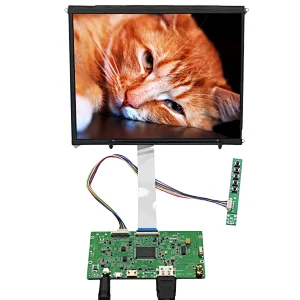

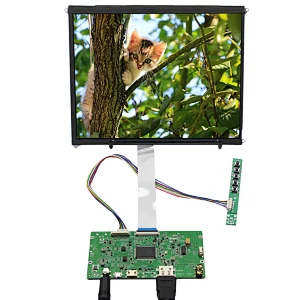

HD MI LCD Controller Board VS-RTD09703-V1 + 9.7inch 2048x1536 IPS LCD Screen(One of LP097QX1 LTL097QL01 HQ097QX1)
Product name:

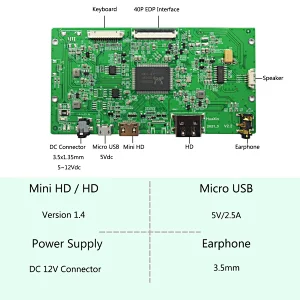

HD MI LCD Controller Board VS-RTD09703-V1
Input Power Adapter:
DC Connector 3.5mmx1.35mm 5~12Vdc Mirco USB 5Vdc
Standby Model:
<1W
Video Input:
Mini HD MI HD MI Version 1.4 Mini HD MI
Audio Output:
Earphone Support Speaker 4ohm 2W or 8ohm 1.5W
OSD:
Brightness Contrast VOL+ VOL- Language And So On
Language:
English French German Spanish Italian And So On
Board Size:
120mm x 62.5mm x 5mm
product name:
9.7inch 2048x1536 IPS LCD Screen(One of LP097QX1 LTL097QL01 HQ097QX1)
Display Mode:
IPS, Normally Black, Transmissive
Resolution:
2048RGB)×1536
Outline Size:
208.88 × 167.12×5 (H×V×D)mm
Display Area:
196.608 × 147.456 (H×V)mm
Brightness:
440 cd/m² (Typ.)
Contrast Ratio:
600:1 (Typ.) (TM)
Viewing Angle:
89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface:
51 pins eDP (4 Lanes) , FPC
Backlight:
WLED
Input Voltage:
3.3V (Typ.)
Packing list :
1× HD MI LCD Controller Board VS-RTD09703-V1
1× 9.7inch 2048x1536 IPS LCD Screen(One of LP097QX1 LTL097QL01 HQ097QX1)
1× Converter Board
1× Signal Cable
1× Keyboard With Cable
