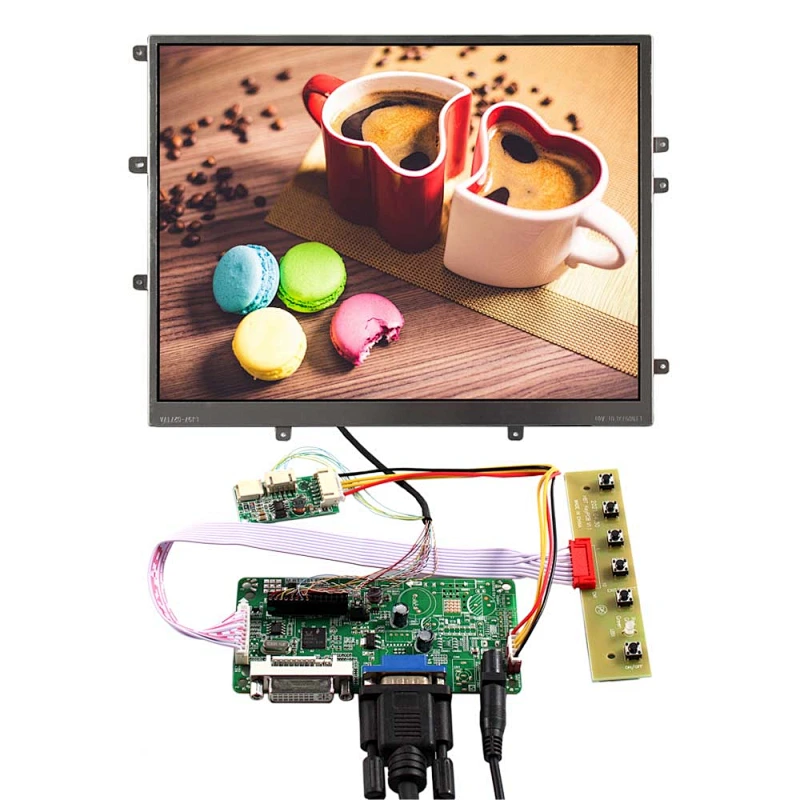

9.7inch LP097X01 1024x768 TFT-LCD Screen With VGA DVI LCD Controller Board 9.7inch LP097X01 1024x768 LP097X01 1024x768 LP097X01
K000982- RT2281+9.7inch IPAD1
Quantity:
US $35.00
To
via
DHL
Estimated Delivery on
5-7
Recommend Products
9.7Inch 2048X1536 Lcd Monitor Screen With Edp Lcd Board KitK003195-VS-RTD2556HM-V2-40pin+9.7inch LP097QX1 K003238-VS-TY2556-V869+9.7inch LP097QX1
51Pins Edp 2048X1536 Lcd Screen 9.7 Inch With Driver BoardK003196-VS-RTD2556HC-V1+9.7inch LP097QX1
H-D LCD Controller Board 9.7 inch 1536X2048 LP097QX2 LTL097QL02 IPS LCD ScreenK001845 VS-RTD09705-V1+ 9.7 LP097QX1
9.7inch LP097QX1 2048x1536 LCD Screen With LCD Driver BoardK001844 VS-RTD09703-V1+ 9.7 LP097QX1

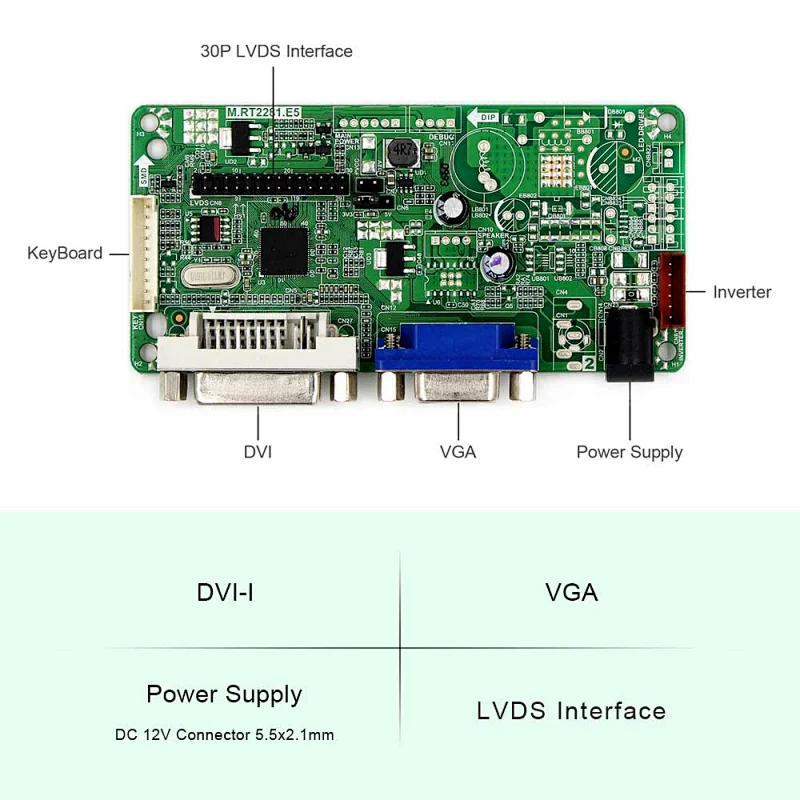

LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

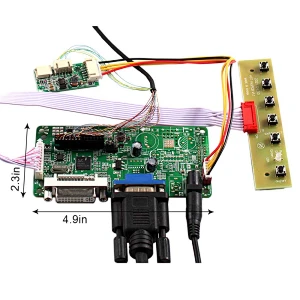

Board Size:125mm x 58mm x 17mm
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:125mm x 58mm x 17mm
9.7inch LP097X01 1024x768 LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1024(RGB)×768
Outline Size 210.32× 164.37×5.22 (H×V×D)
Display Area 196.608×147.456 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS(1ch 6bit) Connector 40Pin
Backlight WLED
Input Voltage 3.3V (Typ.)

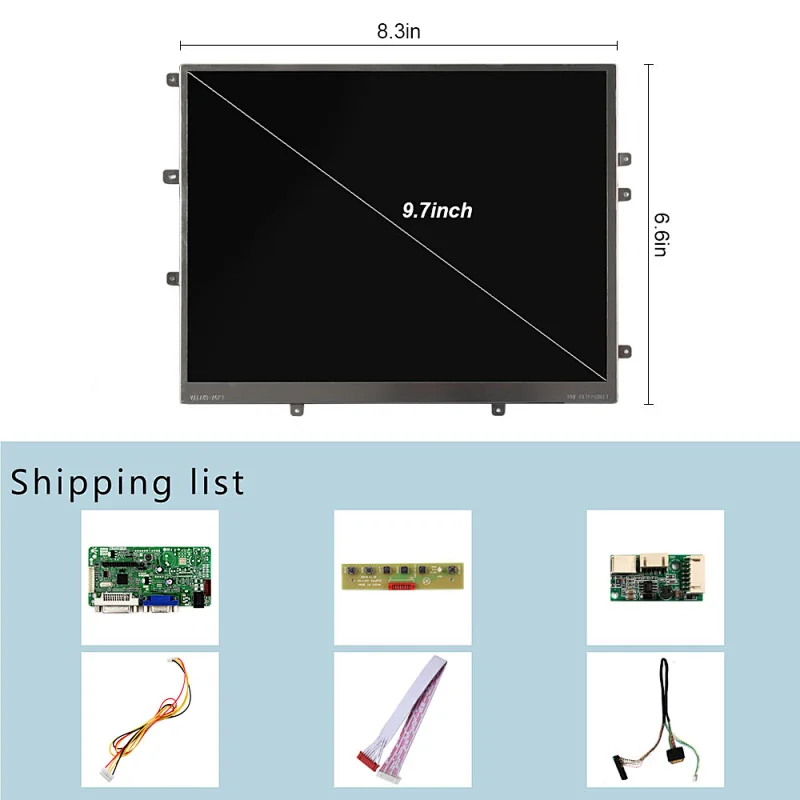

Packing list:
1×VGA DVI LCD Controller Board M.NT2281
1×9.7"LP097X01 1024x768 LCD Screen
1× LVDS Cable
1× Keyboard With Cable
