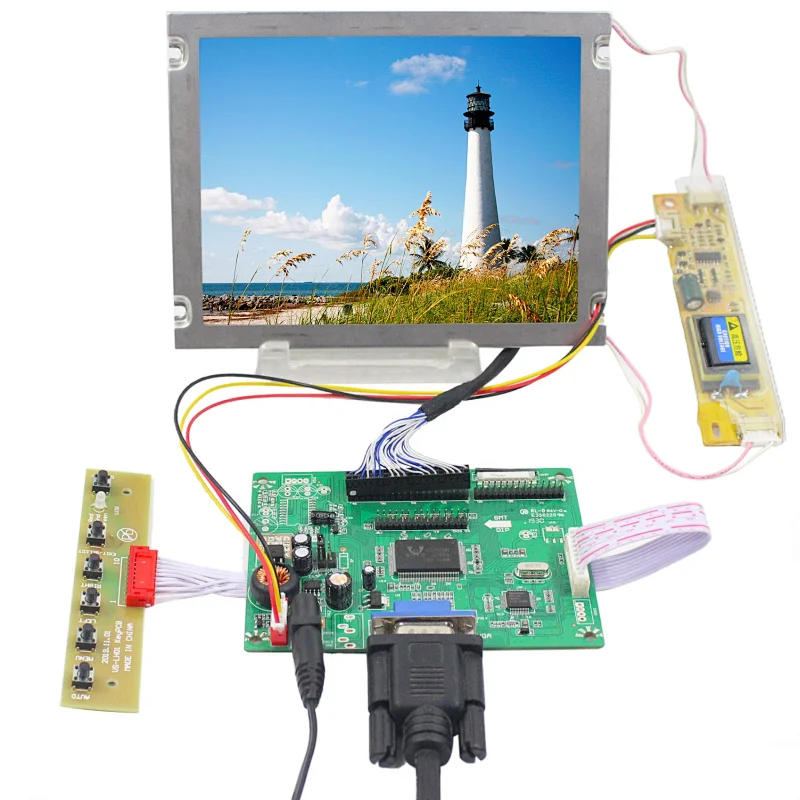

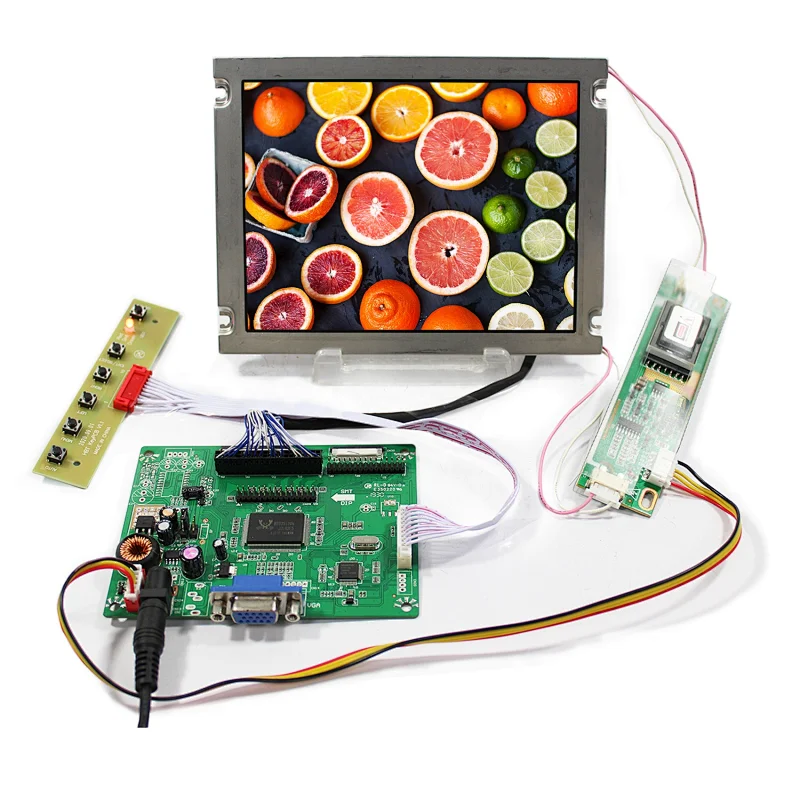

6.5" T-51750GD065J-FW 640X480 LCD Screen 6.6inch Backlight 2CCFL LCD Display with VGA LCD Controller Board

Model NO.
K002422 B.RTMC7C + T-51570GD065J-FW-AND 640X480
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

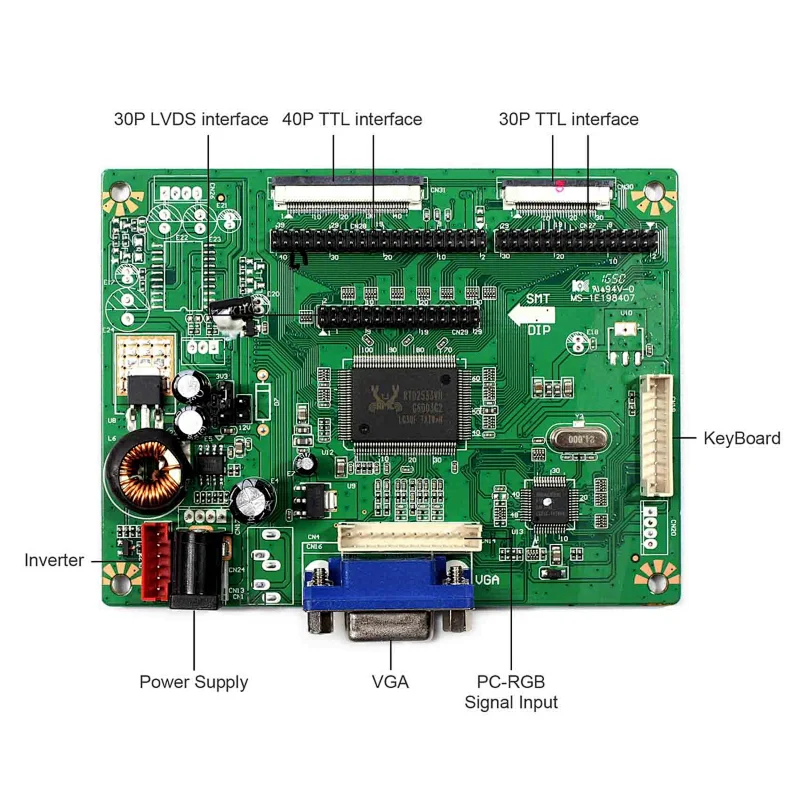

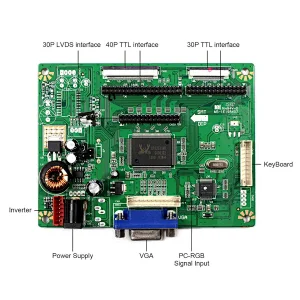

  • LCD Controller Board:
    VGA LCD Board Work for LVDS COMS 31P 41P Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: VGA
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 107mm x 52mm x 18mm

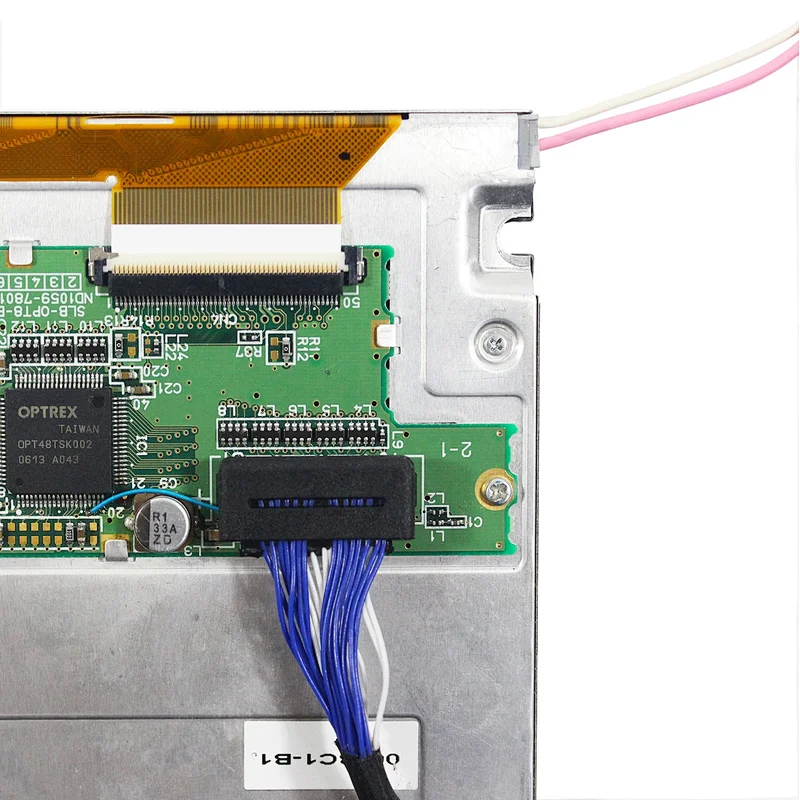

  • 6.5"T-51750GD065J-FW 640X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 640RGB)×480
    Outline Size 158 × 120.36×11.2 (H×V×D)
    Display Area 132.48× 99.36 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 300:1 (Typ.) (TM)
    Viewing Angle 55/55/30/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 6-bit) , 31 pins Connector
    Backlight 2CCFL
    Input Voltage 3.3V /5.0V(Typ.)

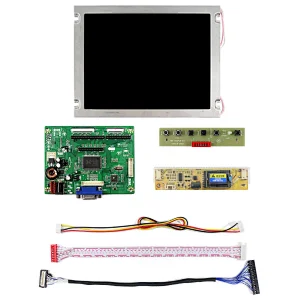

  • Packing list :
    1× VGA LCD Controller Board RTMC7B-A
    1× 6.5inch T-51750GD065J-FW640X480 LCD Screen
    1× LVDS Cable
    1× Inverter Board
    1× Keyboard With Cable
