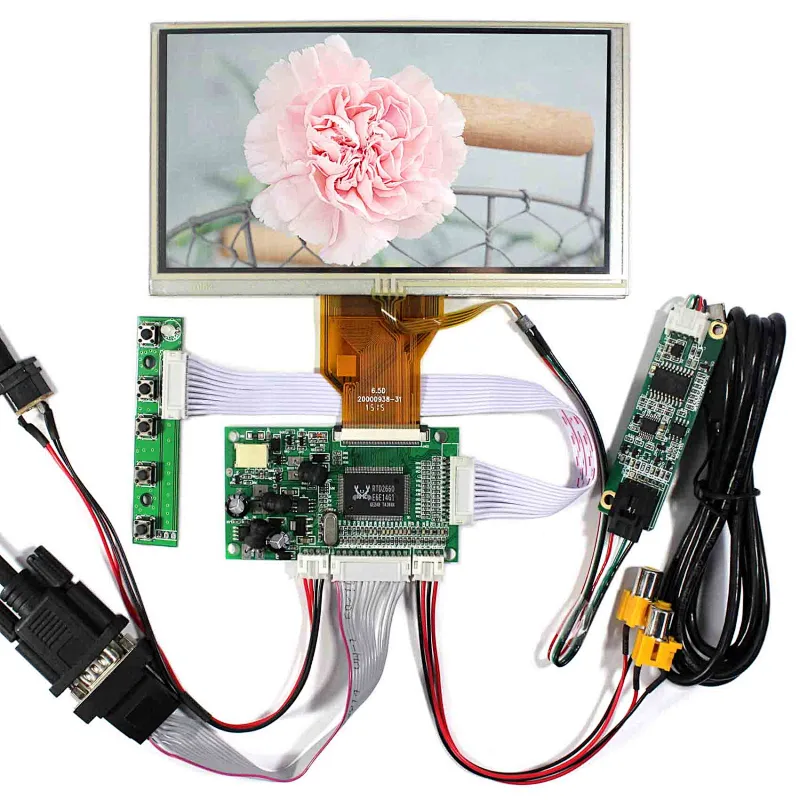

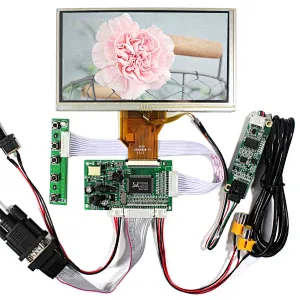

6.5inch AT065TN14 800X480 LCD Screen 4-Wire Resistive Touch Panel with VGA+2AV LCD Controller Board
K000716-VS-TY50-V1+AT065TN14+VS065TP-A1
Quantity:
US $35.00
To
via
DHL
Estimated Delivery on
5-7
Recommend Products
6.5" T-51750GD065J-FW 640X480 LCD Screen 6.6inch Backlight 2CCFL LCD Display with VGA LCD Controller BoardK002422 B.RTMC7C + T-51570GD065J-FW-AND 640X480
H-D-compatible+VGA+AV+USB LCD Controller Board with 6.5inch AT065TN14 800X480 LCD 4-Wire Resistive Touch PanelK001397 VS-V59AV1-V1+AT065TN14+TP+USB controller
6.5inch AT065TN14 800X480 LCD With 4-Wire Resistive Touch Panel H-D-compatible LCD Controller BoardK000963- TY50-V2+AT065T14+TP
6.5" AT065TN14 800X480 50pin LCD Screen work for VGA H-D-compatible control boardK000718 VS-TY2662-V1+AT065TN14+VS065TP-A1

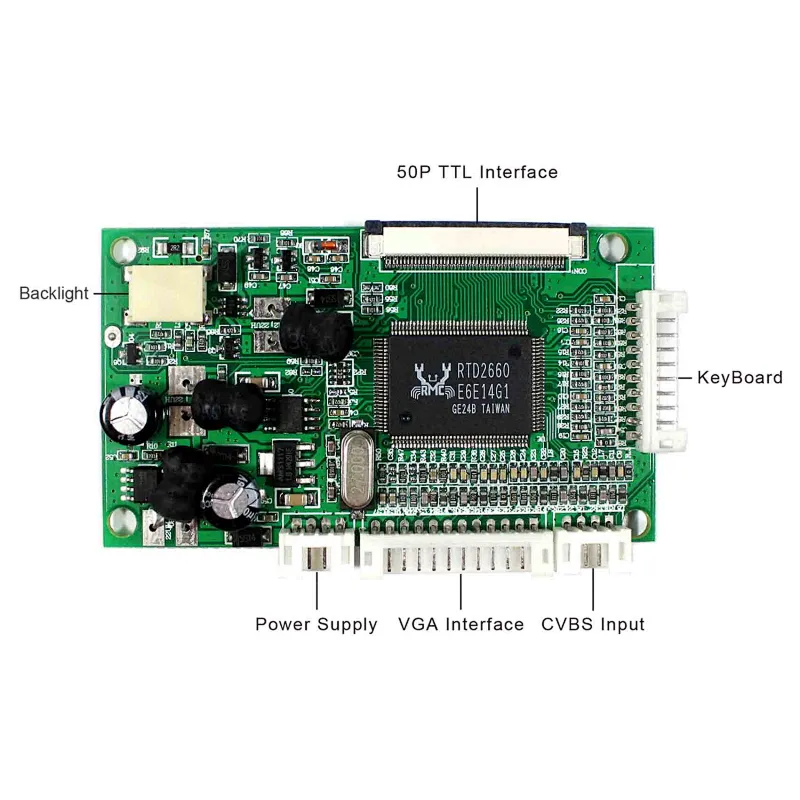

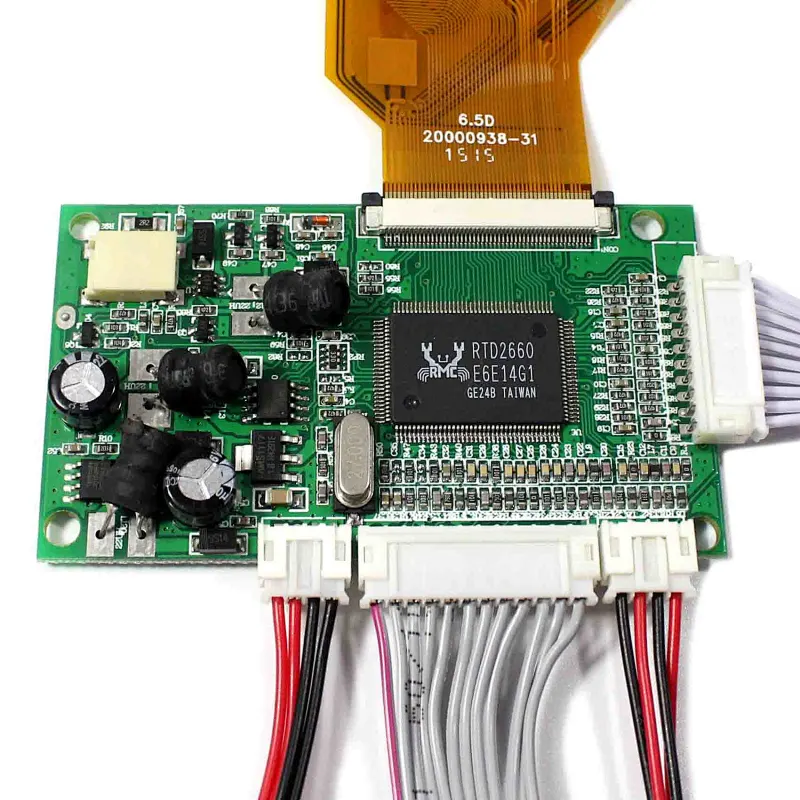

LCD Panel Controller Board:
VGA 2AV LCD Board Work for 50Pin TTL LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:77mm x 45mm x 12mm
6.5"AT065TN14800x480 Touch Screen Panel :
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 155.2 × 89.4×5.7 (H×V×D)
Display Area 143.4 × 76.7 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

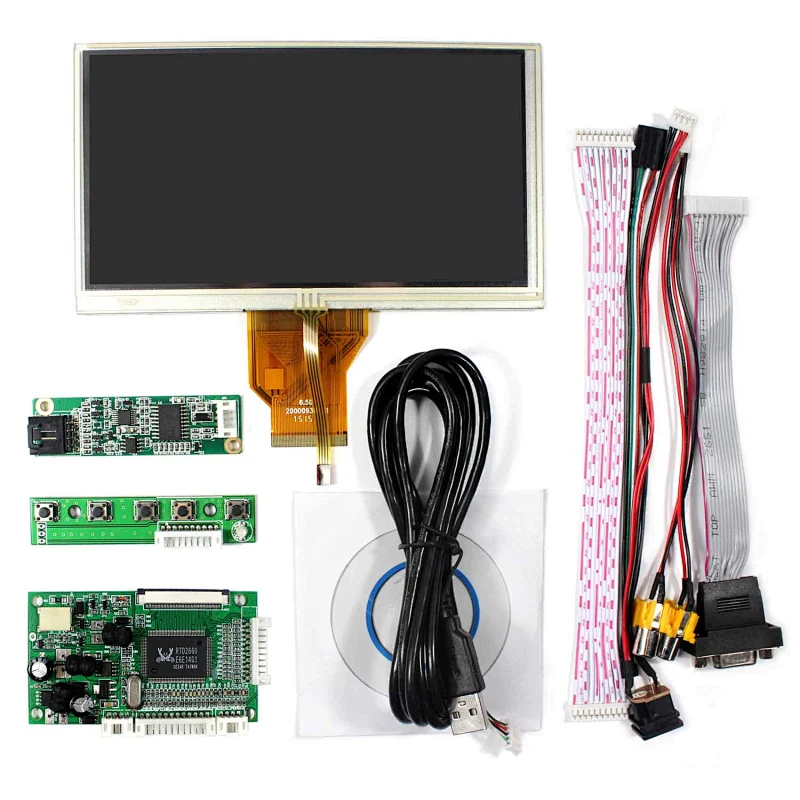

Packing list :
1× VGA+2AV LCD Controller Board VS-TY50-V1
1× 6.5inch AT065TN14 800X480 LCD With 4-Wire Resistive Lcd Touch Screen
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
VGA 2AV LCD Board Work for 50Pin TTL LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:77mm x 45mm x 12mm
6.5"AT065TN14800x480 Touch Screen Panel :
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 155.2 × 89.4×5.7 (H×V×D)
Display Area 143.4 × 76.7 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list :
1× VGA+2AV LCD Controller Board VS-TY50-V1
1× 6.5inch AT065TN14 800X480 LCD With 4-Wire Resistive Lcd Touch Screen
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
