Model NO.
K001562-VST056+NV140FHM
Quantity:

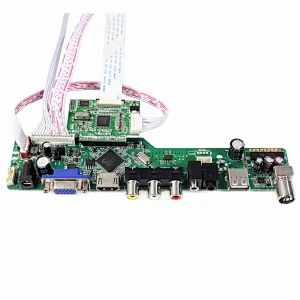

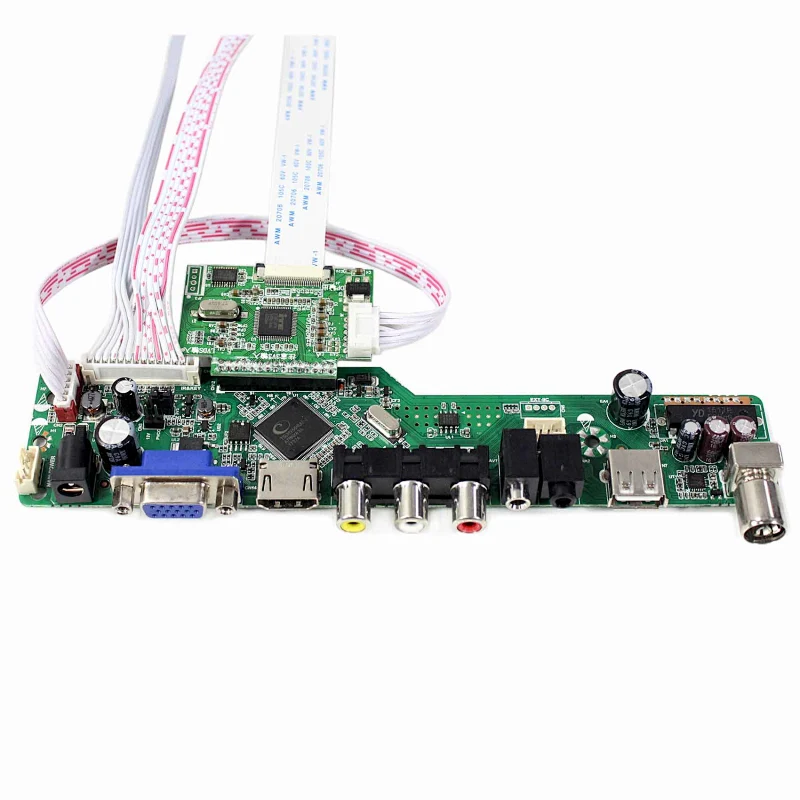

LCD Controller Board:
HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4HDCP 1.2
USB Support Video
AV Compatible With PAL And NTSC
Video Input: HDMI VGA AV USB RF
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:188mm x 43mm x 17mm

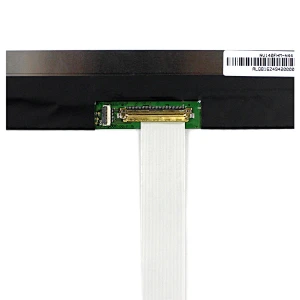

14"LCD Screen NV140FHM-A20:

Display Mode N, ADS, Normally Black, Transmissive

Resolution 1920RGB)×1080
Outline Size 320.4 × 205.1 × 3 (H×V×D)
Display Area 309.31 × 173.99 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins

Backlight WLED
Input Voltage  3.3V (Typ.)

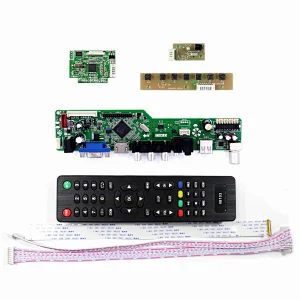

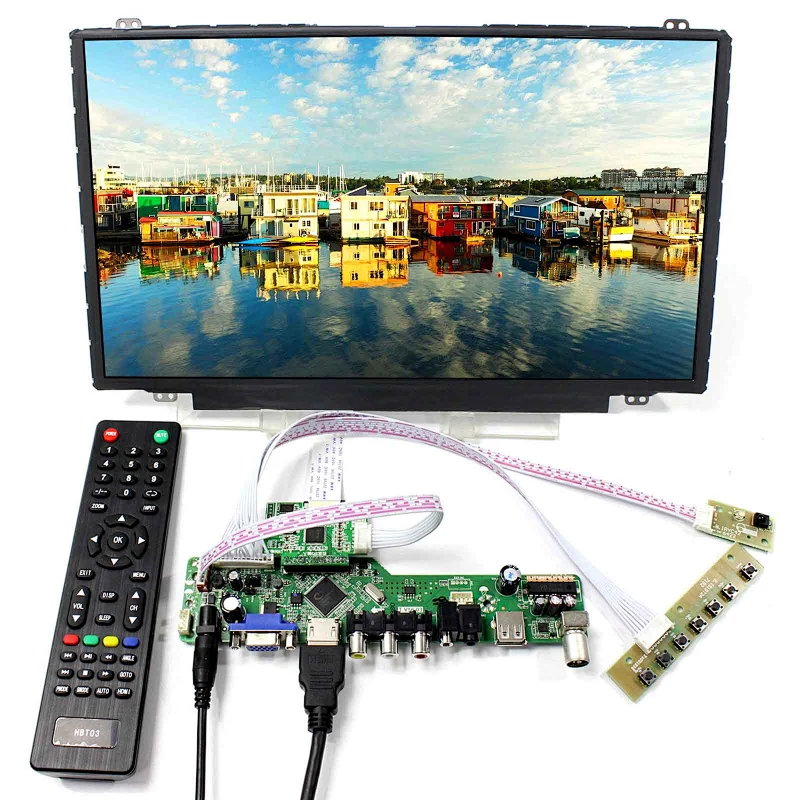

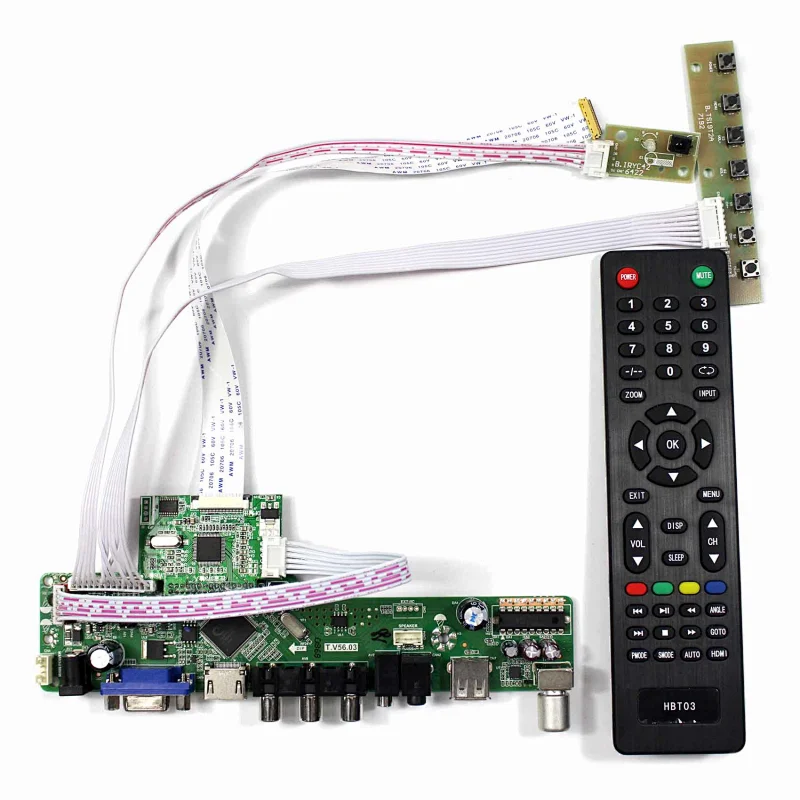

Packing list :
1×HDMI VGA AV USB RF LCD Controller Board T.V56.03

1×14inch NV140FHM-A20 1920X1080 IPS LCD Screen
1× Signal Cable

1× Keyboard With Cable
1× Remote Control(Battery Not included)
