Model NO.:
VST56.03+B140HAN01.2(K001561)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Screen Size:14inch
  • Product Name:lcd display
  • Dots Format:1920x1080
  • Type:TFT lcd
  • Driver Board:TV VGA AV USB RF
  • Connector:edp
  • Up to Resolution:Up to 2048*1152
  • Work Current:200~250mA
  • Work Voltage:DC 12V
  • Place of Origin:CN;GUA
  • Display Size:14inch
  • Model Number:VST56.03+B140HAN01.2(K001561)
  • Brand Name:VS

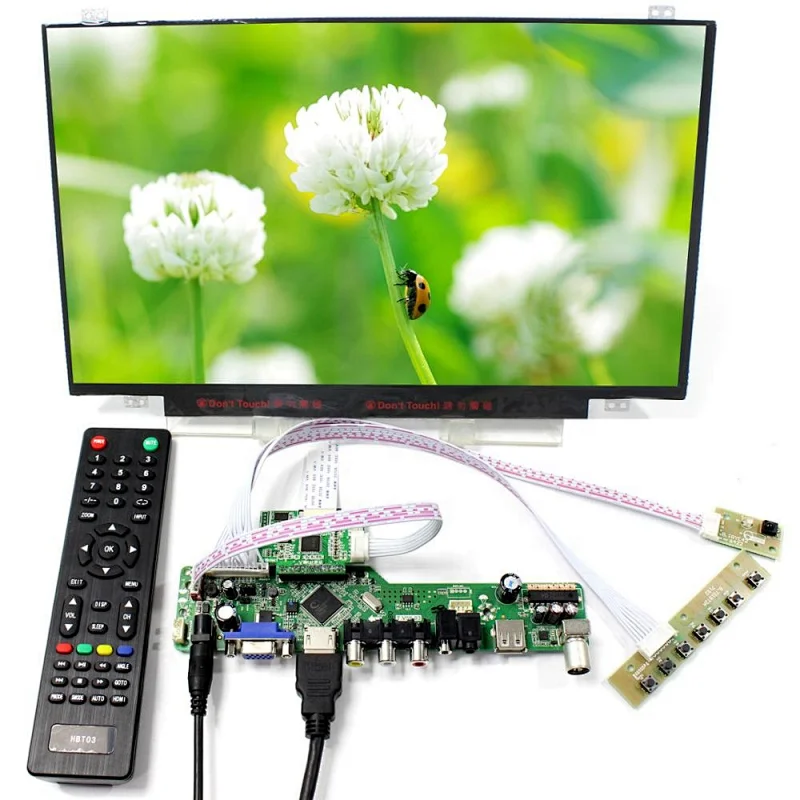

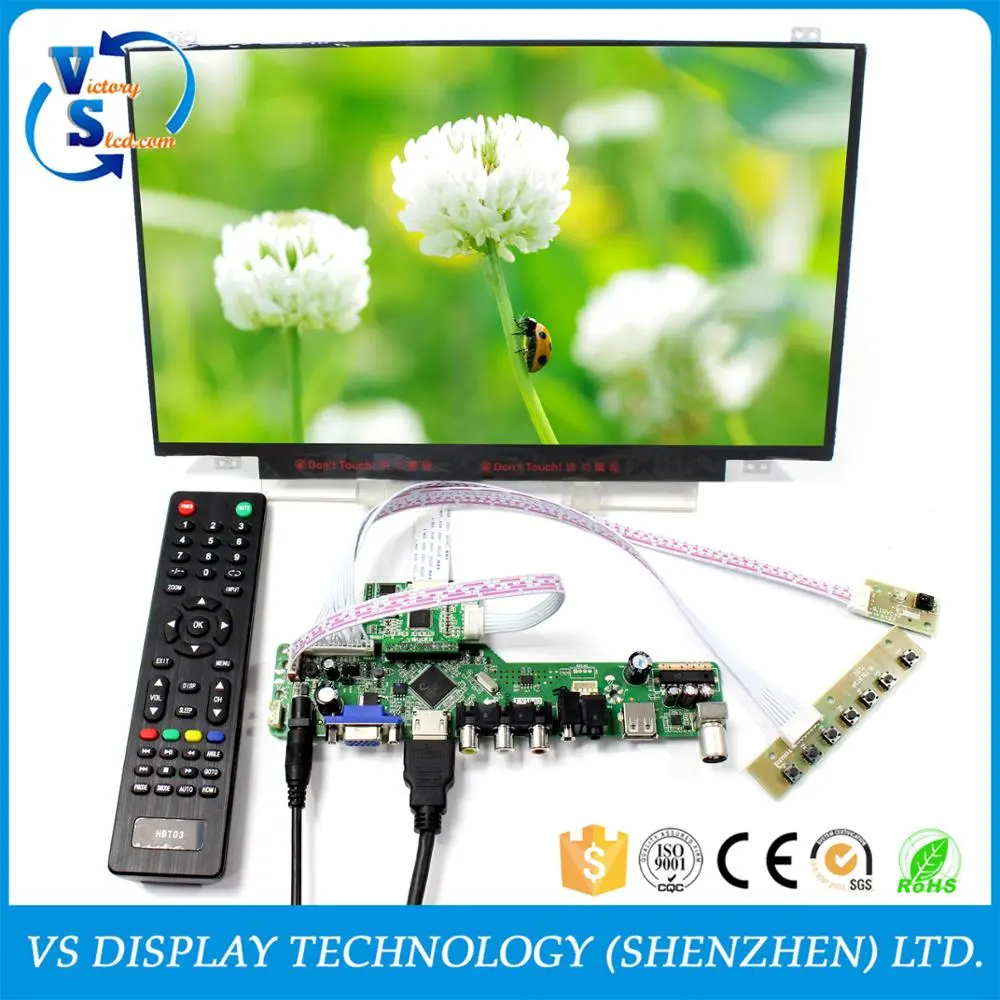

TV LCD Controller board T.V56.03 with 14icnh 1920x1080 EDP Interface LCD Screen B140HAN01.2

Product Description

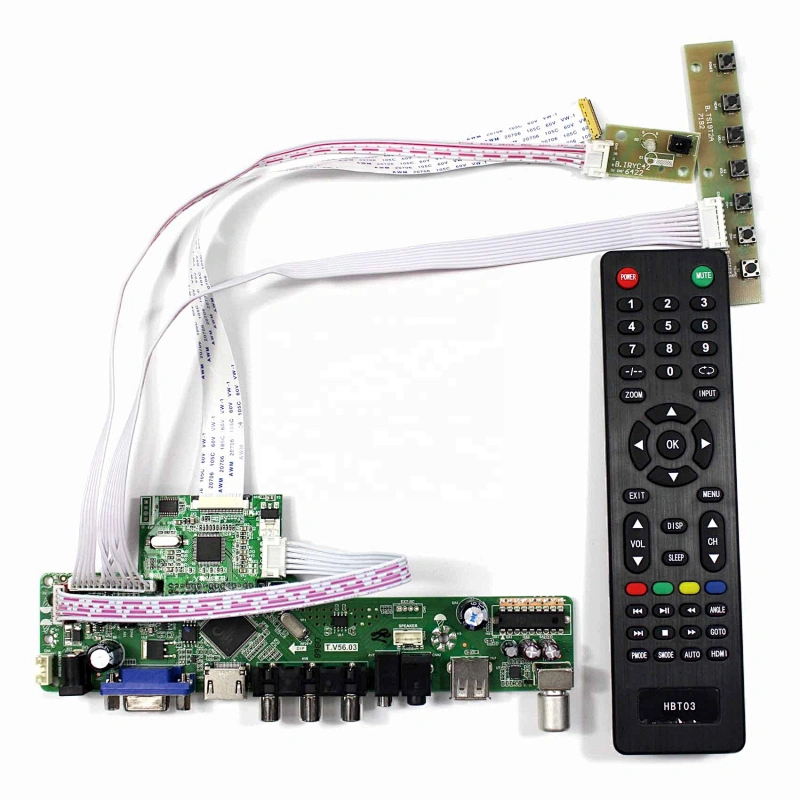

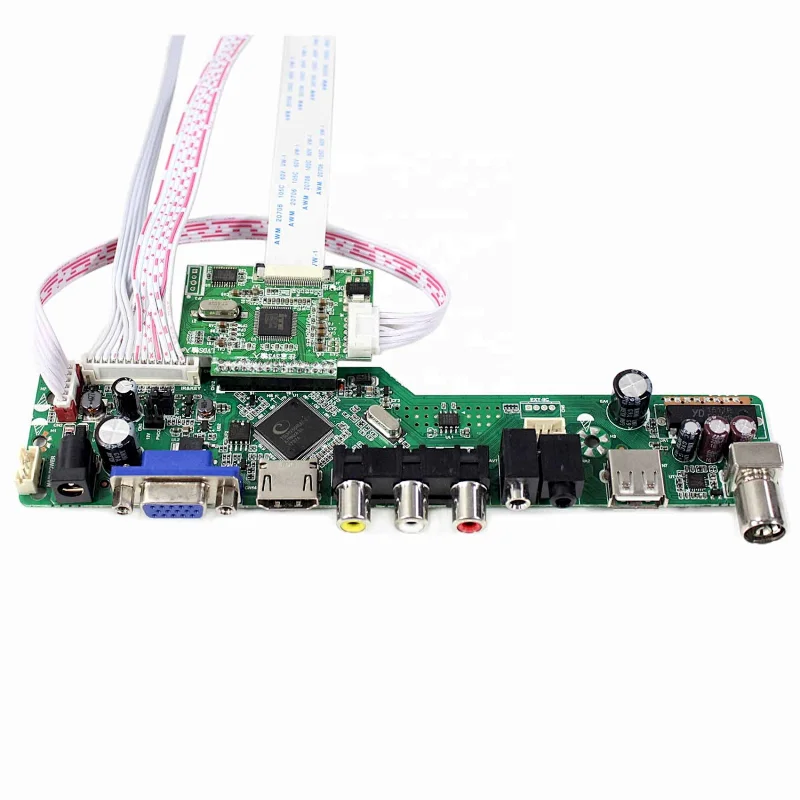

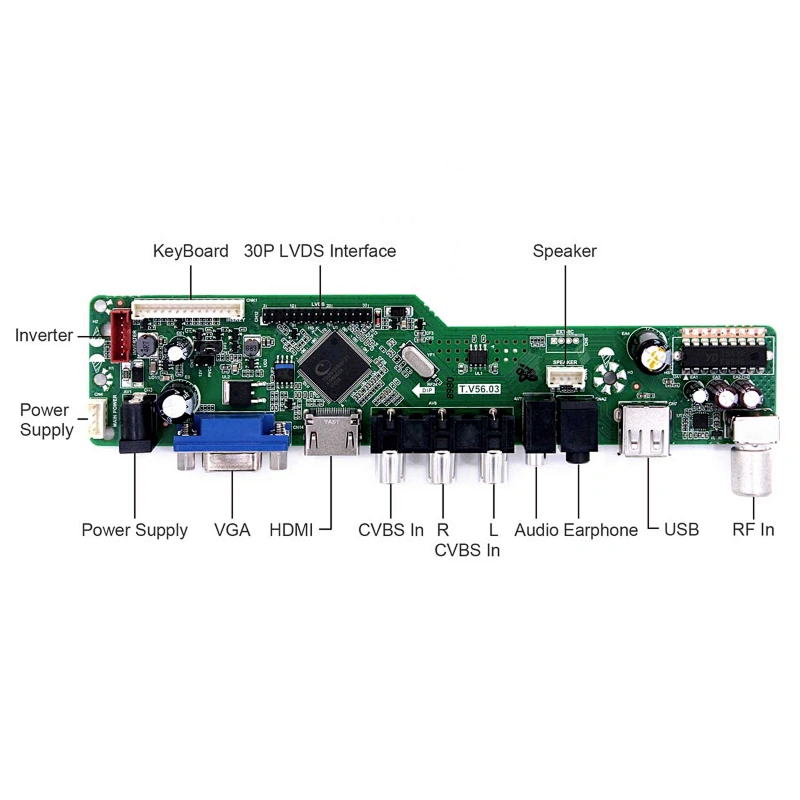

LCD Controller Board T.V56.03:

K001721(4)-4

Board Size:188mm x 43mm x 17mm

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

AV Compatible With PAL And NTSC

Audio Output: Speaker Connector

OSD: Brigtness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

14” 1920x1080 LCD Screen B140HAN01.2:


Display Mode: AHVA, Normally Black, Transmissive

Panel Type: a-Si TFT-LCD, LCM


Resolution: 1920×1080

Outline Size: 320.4(H)×205.6(V)x3(D)mm


Display Area: 309.14(H)×173.89(V)

Backlight type: WLED

Aspect Ratio: 16:9 (H:V)

Brightness: 300 cd/m² (Typ.)


Contrast Ratio: 700 : 1 (Typ.) (Transmissive)


Viewing Angle: 89/89/89/89(Typ.)(CR≥10)

Signal Interface: eDP signals 30pins


Operating Temperature:0~50 °C

Weight: 270g

Packaging & Shipping

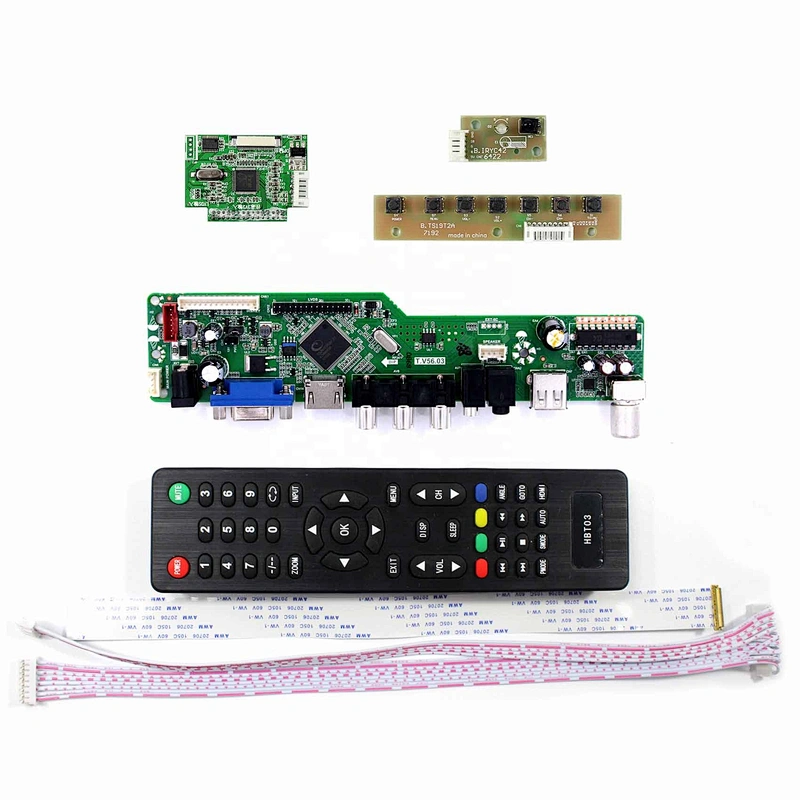

K001561(6)

1× LCD Controller Board T.V56.03

1×14inch 1920x1080 EDP interface LCD panel B140HAN01.2

1× EDP converter board with cable

1× Keyboard with Wire

1× Remote control (Battery not included)

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Company Information

workshop

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
