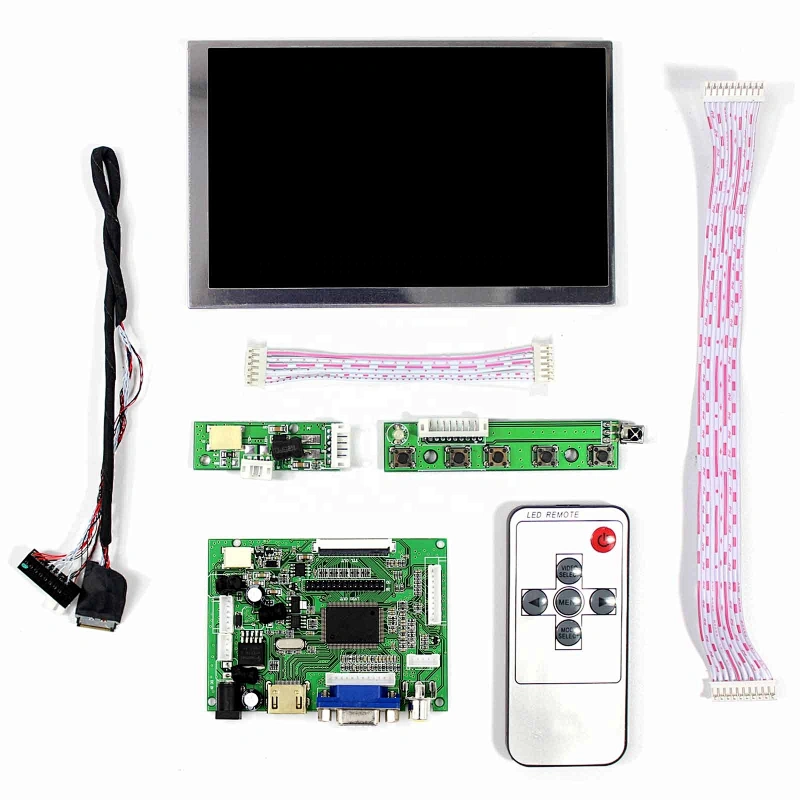

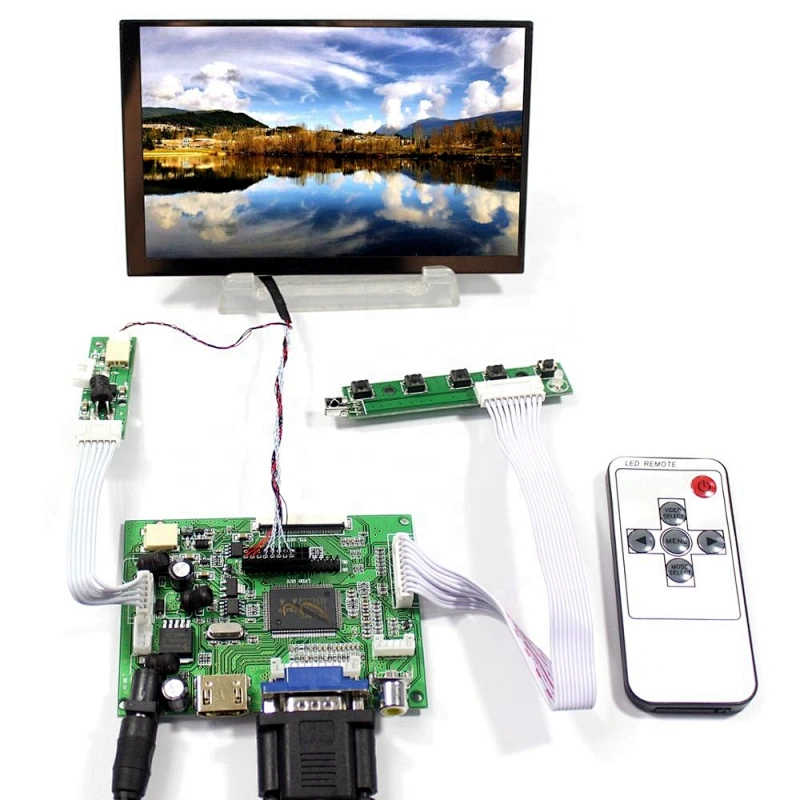

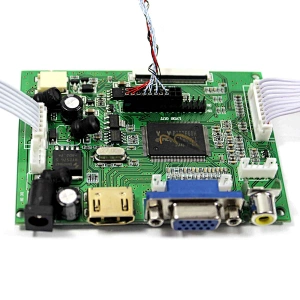

LCD Controller Board VS-TY2662-V1:
VS-TY2662-V1 is a LCD control board, it supports between 7 and 22 inch LCD panel with single /dual LVDS interface.
This board support VGA+2CVBS input and support reversing function
Size: 90.58mm(L)*65.6mm(W)*12mm(H)
Input Power Adapter: 12Vdc More than 2A
OSD LANGUAGE: English, French, German, Italian, Spanish, Portuguese, Japanese, Korean (optional) And So On
KEY FUNCTION: Auto, Menu, Vol-, Vol+, Power
Operation temperature: 0~40°C.
standby< 1W

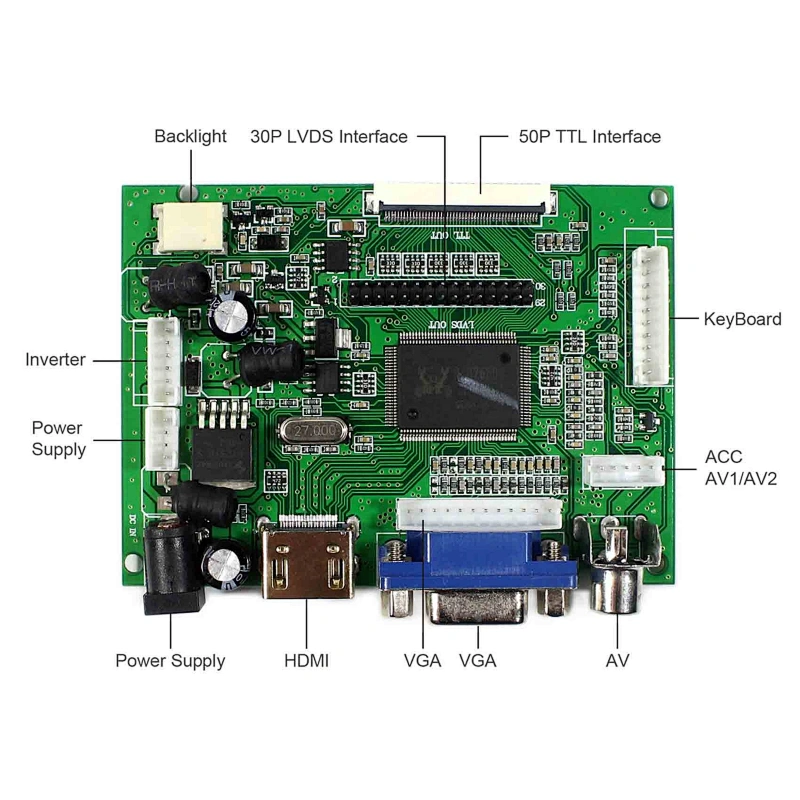

Panel Interface: 50PIN TTL/6Bit 8it Dual/Single LVDS interface
Panel Resolution: Up to 1920x1080
GENERAL PRECAUTIONS:
Don’t wire in the board to power supply before panel is correctly connected
5.6"LTD056ET3A 1024x600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution: 1024×600
Outline Size: 136.8 × 85.9×4.9 (H×V×D)
Display Area: 122.88 × 72 (H×V)
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)
Viewing Angle: 40/40/20/30 (Typ.)(CR≥10)

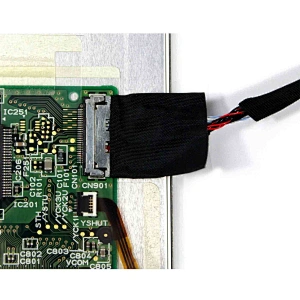

Signal Interface: LVDS (1 ch, 6-bit) , 25 pins , Connector
Backlight: WLED
Input Voltage: 3.3V (Typ.)
Operating Temperature: 0 ~ 50 °C
Weight: 61g
