14inch NV140FHM 1920X1080 IPS LCD Screen 14.0

14inch NV140FHM 1920X1080 IPS LCD Screen 14.0" eDP 30pin Display Panel with HD-MI TYPE-C LCD Controller Board VS-RTD2556HC30-V1

Model NO.: K002285 VS-RTD2556HC30-V1 30pin+NV140FHM-A20
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 set
Country of Origin:: CHINA

Quantity:

Product Description

Type:TFT
Display Size:14inch
Supplier Type:Manufacture
Place of Origin:Guangdong, China
Brand Name:VS
Products Status:Stock
Resolution:1920RGB)x1080
Brightness:300 cd/m² (Typ.)
Contrast Ratio:800:1 (Typ.) (TM)
Viewing Angle:85/85/85/85
Signal Interface:eDP (2 Lanes) , Connector , 30 pin Backlight WLED
Backlight:WLED
Input Power Adapter:Type-C connector
HDR:Support
Board Size:80mm x 51mm x 8mm

Products Show

Product Description

LCD Screen:	14"LCD Screen NV140FHM
Details:	Display Mode N, ADS, Normally Black, Transmissive Resolution 1920RGB)×1080 Outline Size 320.4 × 205.1 × 3 (H×V×D) Display Area 309.31 × 173.99 (H×V) Brightness 300 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface eDP (2 Lanes) , Connector , 30 pin Backlight WLED Input Voltage 3.3V (Typ.)

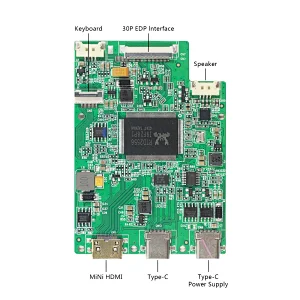

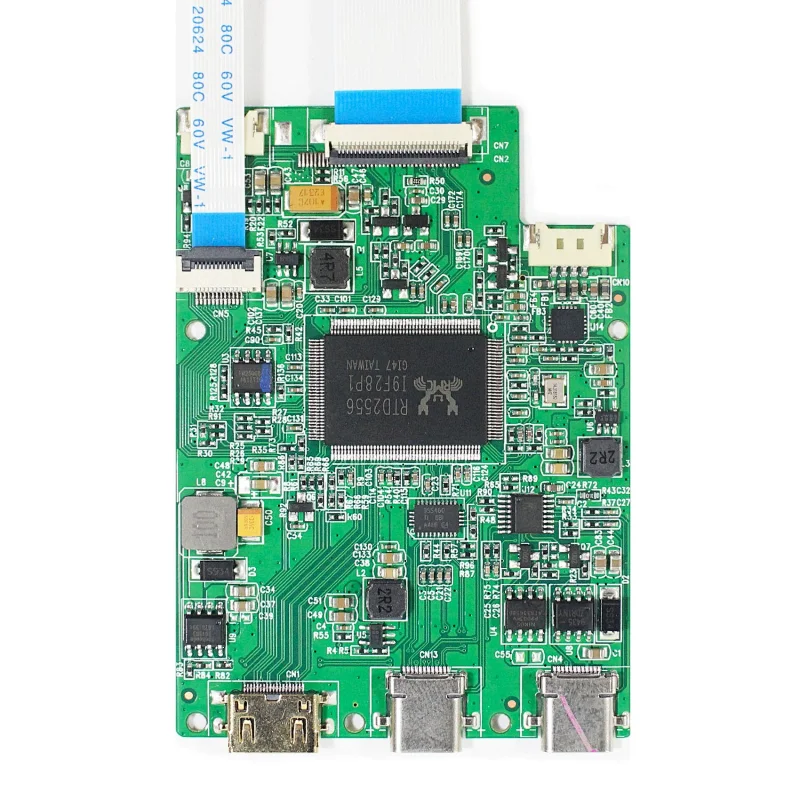

LCD Board:	HDMI Type C Control Board Work for 30Pin EDP LCD Screen
Details:	Input Power Adapter: Type-C connector HDR: Support Come In Standby Model When Not Input Signal Audio Speaker Standby Model <0.3W Input: Type-C Mini HDMI Output: Type C USB(max 500mA) OSD: Brightness Contrast VOL+ VOL- Language And So On Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski Nederlands Korean Japanese Board Size: 80mm x 51mm x 8mm

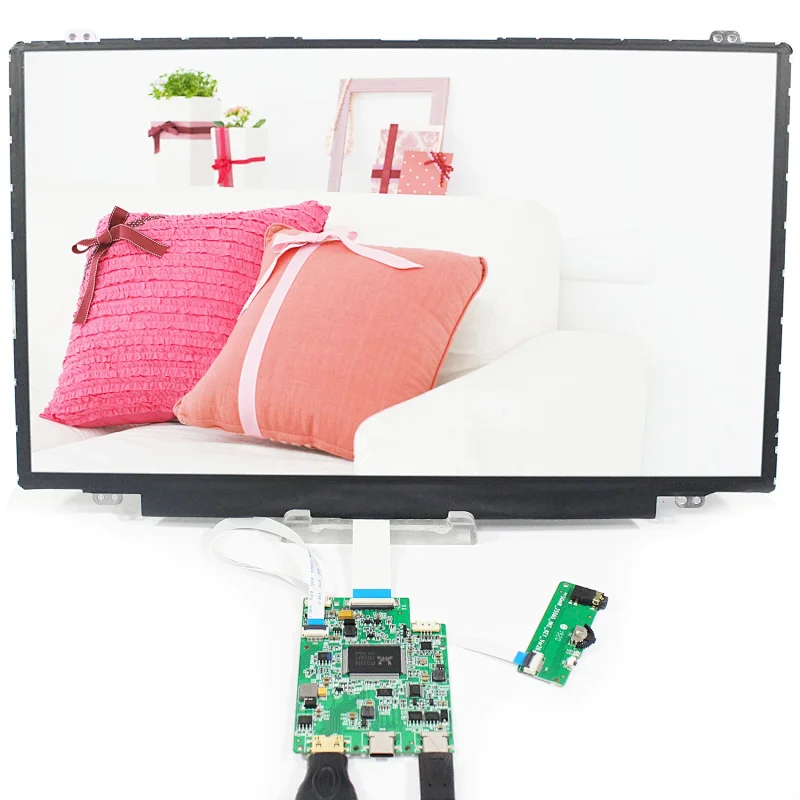

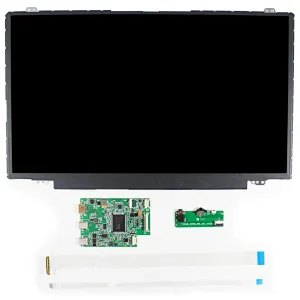

Packing list:	1× HDMI TYPE-C LCD Controller Board VS-RTD2556HC30-V1 1×14inch NV140FHM 1920X1080 IPS LCD Screen 1× Signal Cable 1× Keyboard With Cable

Video Door Phone

16 x 4 LCD Module use for Video Door Phone

From Romania Customer

Outline Dimension : 87.0 x 60.0 x 10.0/13.5(mm)

LCD Type : STN, POSITIVE

Driver IC : SPLC780D1

Backlight : YG LED

Supply Voltage : 5V

Favorable Comment

10.4inch 800x600, 1024x768 tft lcd use for Aerial photograpy

From Europe customer

LCD Size :10.4"

Resolution :800RGB)×600

Outline Size :236 × 174.3×4.9 (H×V×D)mm

Brightness :500 cd/m² (Typ.)

Signal Interface :LVDS (1 ch, 6-bit) , 20pins, Connector

Input Voltage : 3.3V (Typ.)
