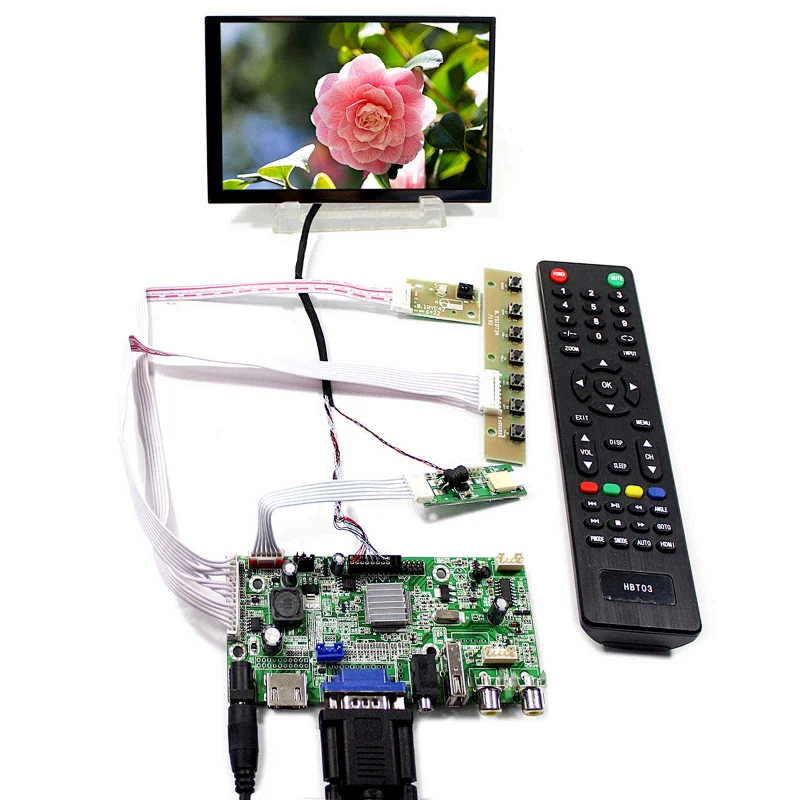

5.6inch LTD056ET3A 1024X600 Aspect Ratio 16:9 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board
5.6inch LTD056ET3A 1024X600 Aspect Ratio 16:9 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board
5.6inch LTD056ET3A 1024X600 Aspect Ratio 16:9 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board
5.6inch LTD056ET3A 1024X600 Aspect Ratio 16:9 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board
5.6inch LTD056ET3A 1024X600 Aspect Ratio 16:9 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board
5.6inch LTD056ET3A 1024X600 Aspect Ratio 16:9 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board
5.6inch LTD056ET3A 1024X600 Aspect Ratio 16:9 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board
5.6inch LTD056ET3A 1024X600 Aspect Ratio 16:9 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board
5.6inch LTD056ET3A 1024X600 Aspect Ratio 16:9 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board
5.6inch LTD056ET3A 1024X600 Aspect Ratio 16:9 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board
5.6inch LTD056ET3A 1024X600 Aspect Ratio 16:9 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board

5.6inch LTD056ET3A 1024X600 Aspect Ratio 16:9 TFT-LCD Screen With HDMI+VGA+AV+USB LCD Controller Board

Model NO.
K001330-VS-V59AV-V1+LTD056ET3A
Quantity:

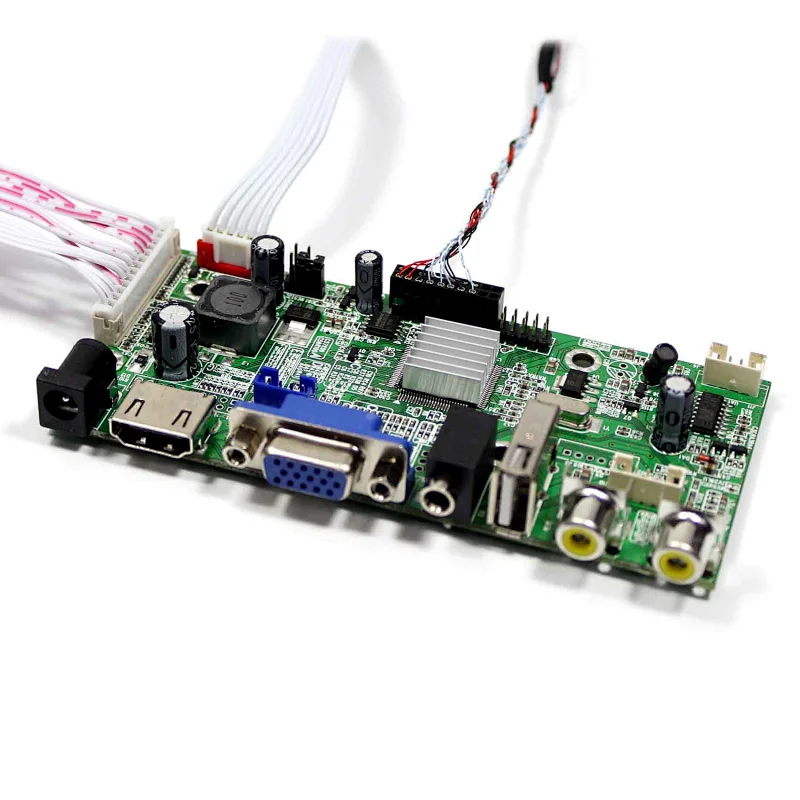

LCD Controller Board:
HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4HDCP 1.2
USB Support Video
AV1 AV2 Compatible With PAL And NTSC

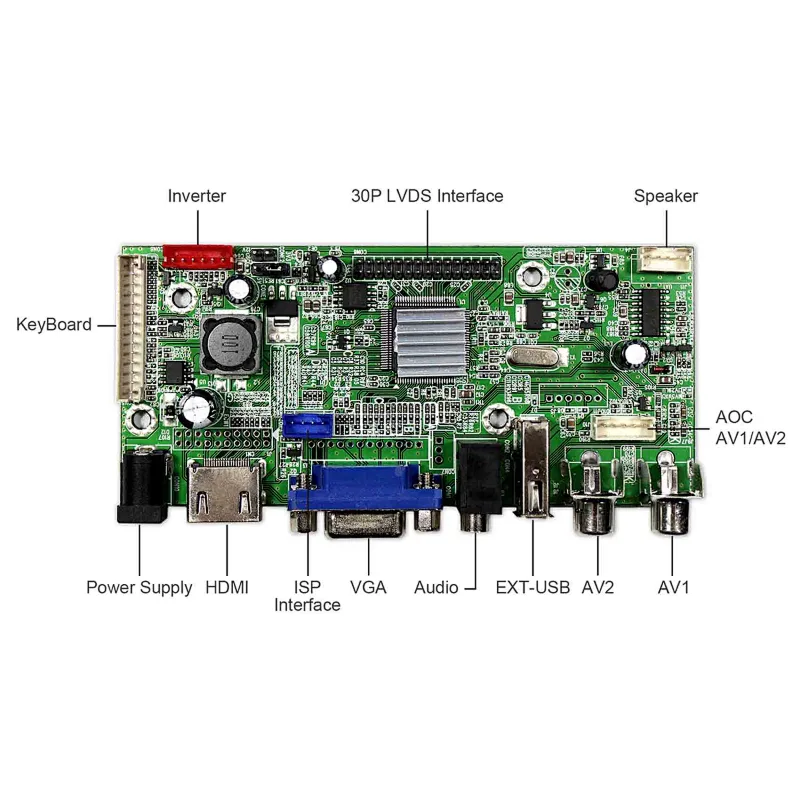

Video Input: HDMI VGA AV1 AV2 USB
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:118mm x 54mm x 17mm

5.6"LTD056ET3A 1024X600 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 136.8 × 85.9×4.9 (H×V×D)
Display Area 122.88 × 72 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 25 pins , Connector

Backlight  WLED
Input Voltage  3.3V (Typ.)

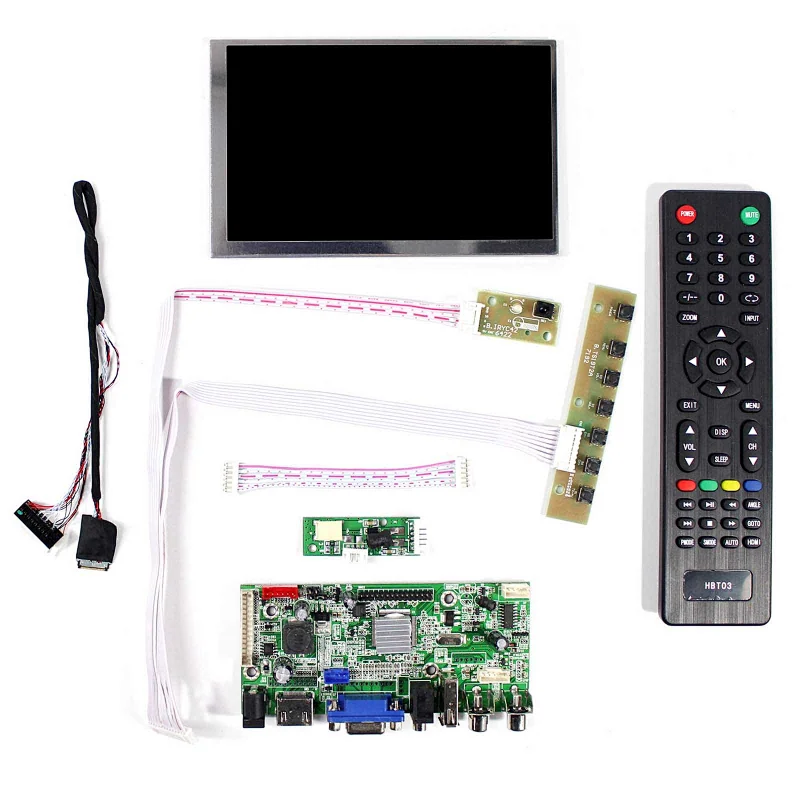

Packing list :
 HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1

1× 5.6inch LTD056ET3A 1024X600 LCD Screen
 Converter Board
 LVDS Cable
 Keyboard With Cable
1× Remote Control(Battery Not included)
